Dell P62F - Removing the Hard Drive Cable; Installing the Hard Drive Cable; Removing the Memory Module

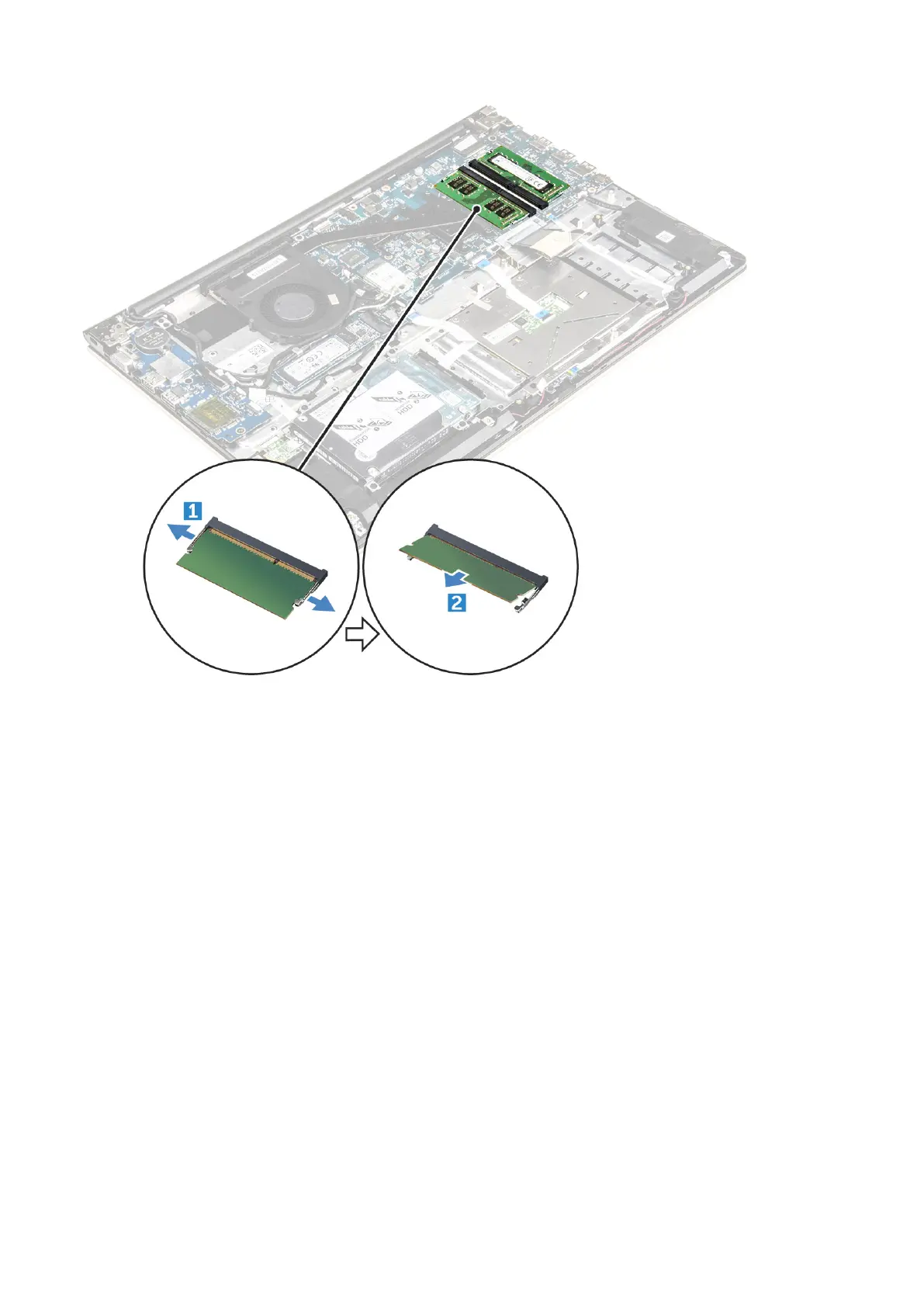

Installing the memory module
1. Insert the memory module into the memory module socket.
2. Press the memory module until it clicks into place.
3. Install the:
a. battery
b. back cover
4. Follow the procedure in After working inside your computer
Removing the WLAN card
1. Follow the procedures in Before working inside your computer.
2. Remove the:
a. back cover
b. battery
3. To remove the WLAN card:
a. Remove the screw that secures the WLAN card to the computer and lift the plastic tab [1] [2].
b. Disconnect the antenna cables from the WLAN card [3].
c. Remove the WLAN card from the slot on the system board [4].
20
Removing and installing components
