d. LED board
e. system fan
f. display assembly
g. SSD
h. memory
i. heat sink
j. system board
3. To remove the power connector:

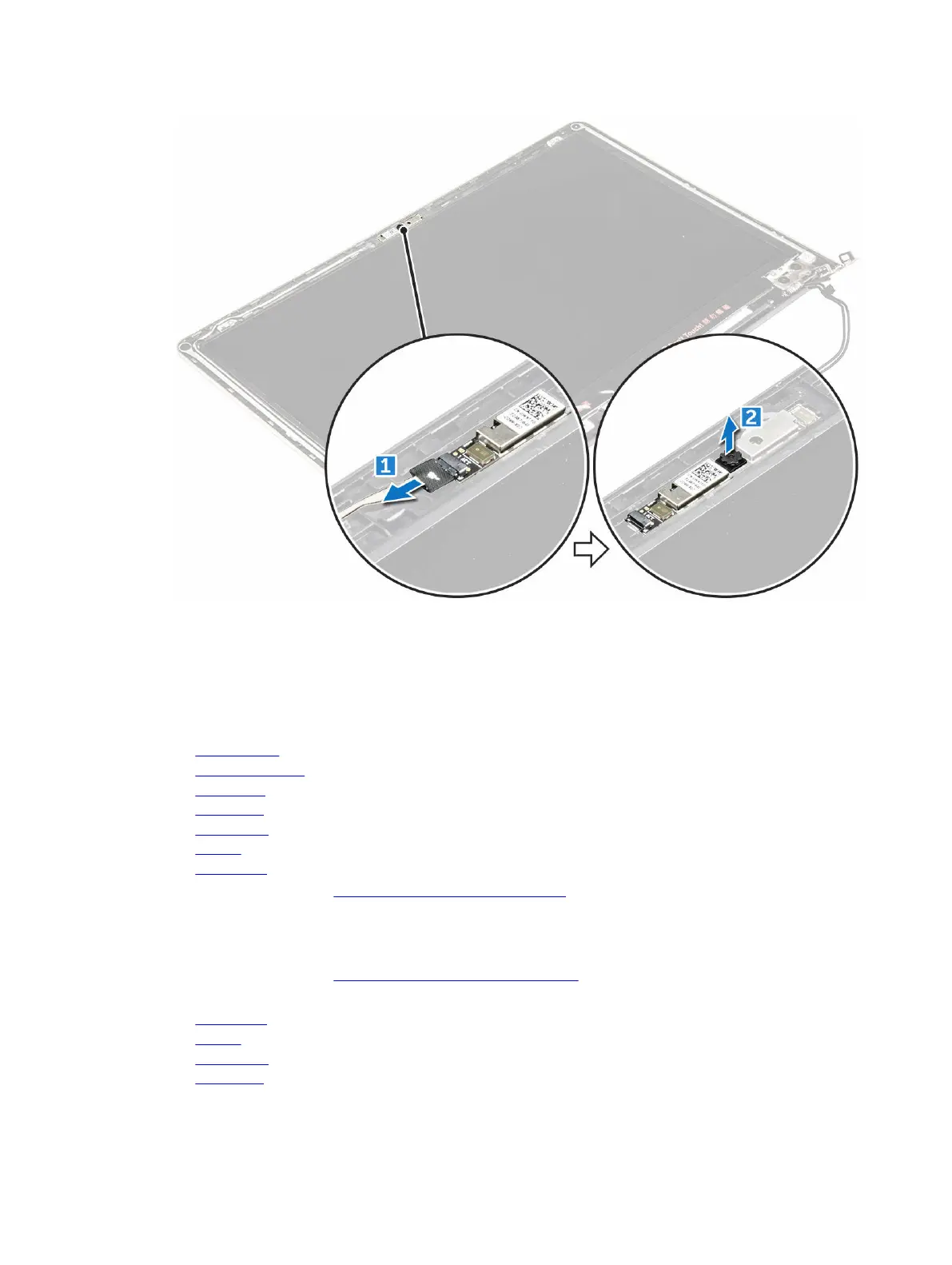

a. Lift the power connector cable from its routing channel. [1]
b. Lift to remove the power connector from the computer. [2]
Installing the power connector
1. Align the power connector into its slot on the computer chassis.
2. Install the:
a. system board
b. display assembly
c. system fan
d. LED board
e. SSD
f. heat sink
g. memory
h. WLAN card
i. battery
j. back cover
3. Follow the procedure in After working inside your computer
Removing and installing components
43
