Installing the coincell battery
1. Place the coin cell into the slot on the system board.
2. Connect the battery cable to the system board.
3. Install the:
a. battery
b. base cover
4. Follow the procedure in After working inside your computer
Speakers
Removing the speakers
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. base cover
b. battery

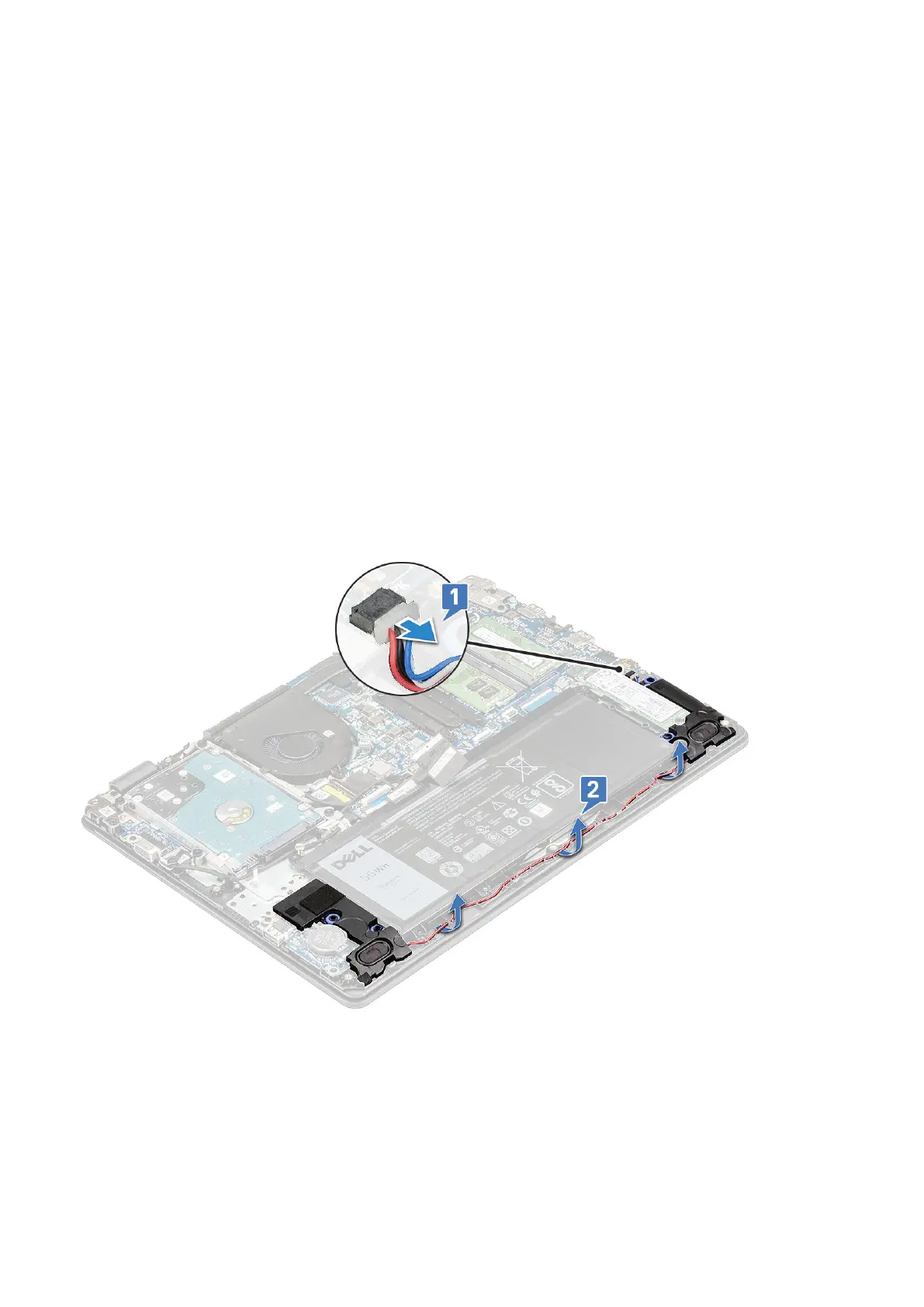

3. To remove the speakers:
a. Disconnect the speaker cable from the connector on the system board [1].
b. Unroute the speaker cable from the routing channel [2].
4. Lift the speakers from the computer.
Disassembly and reassembly
35
