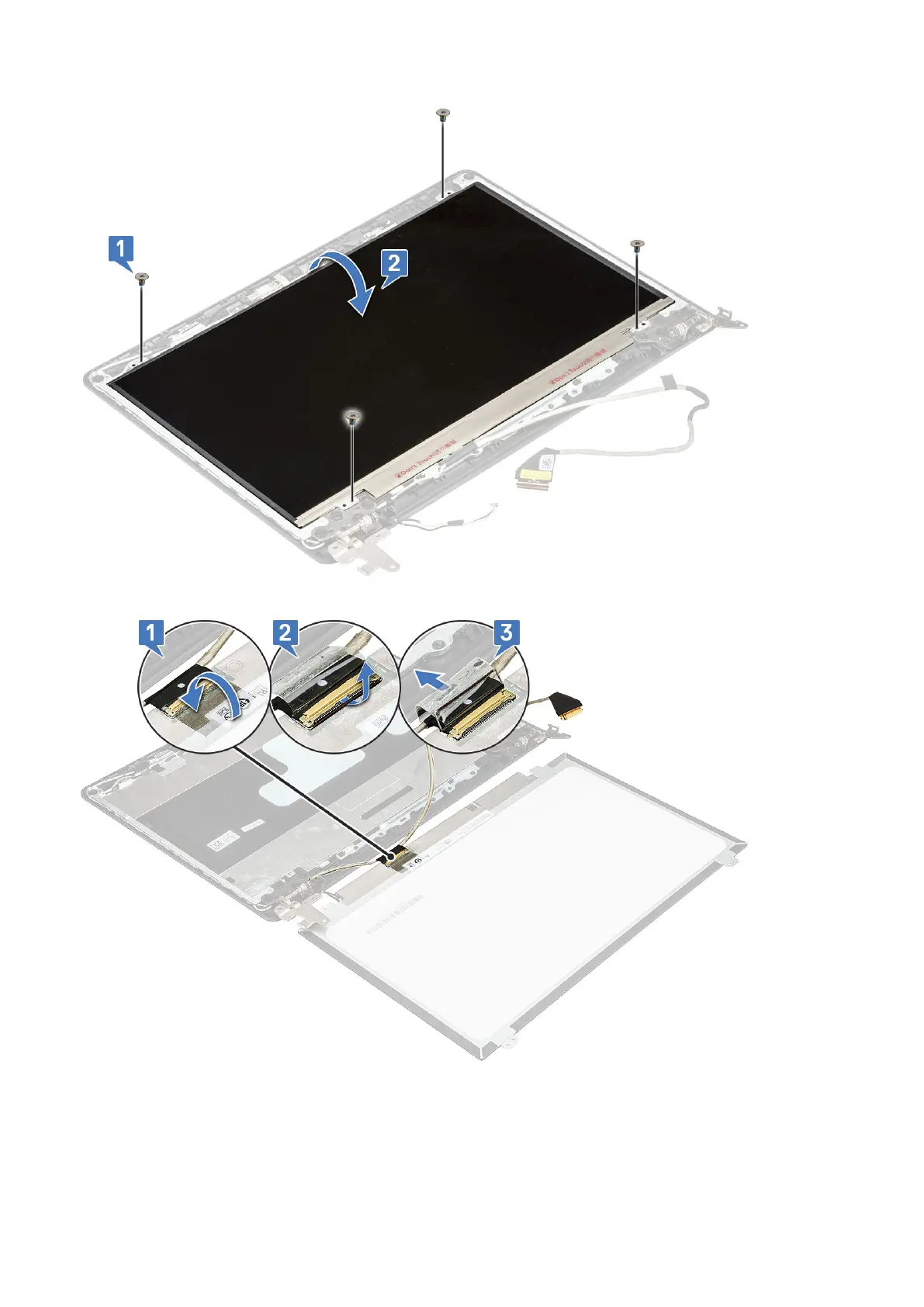

6. Lift up the adhesive sticker [1]and disconnect the cable from the LCD panel [2,3].
Installing the LCD Panel
1. Connect the LCD cable to its connector on the back side of the LCD panel.
2. Affix the adhesive sticker.
Disassembly and reassembly
53
