Dell P89G - Page 37

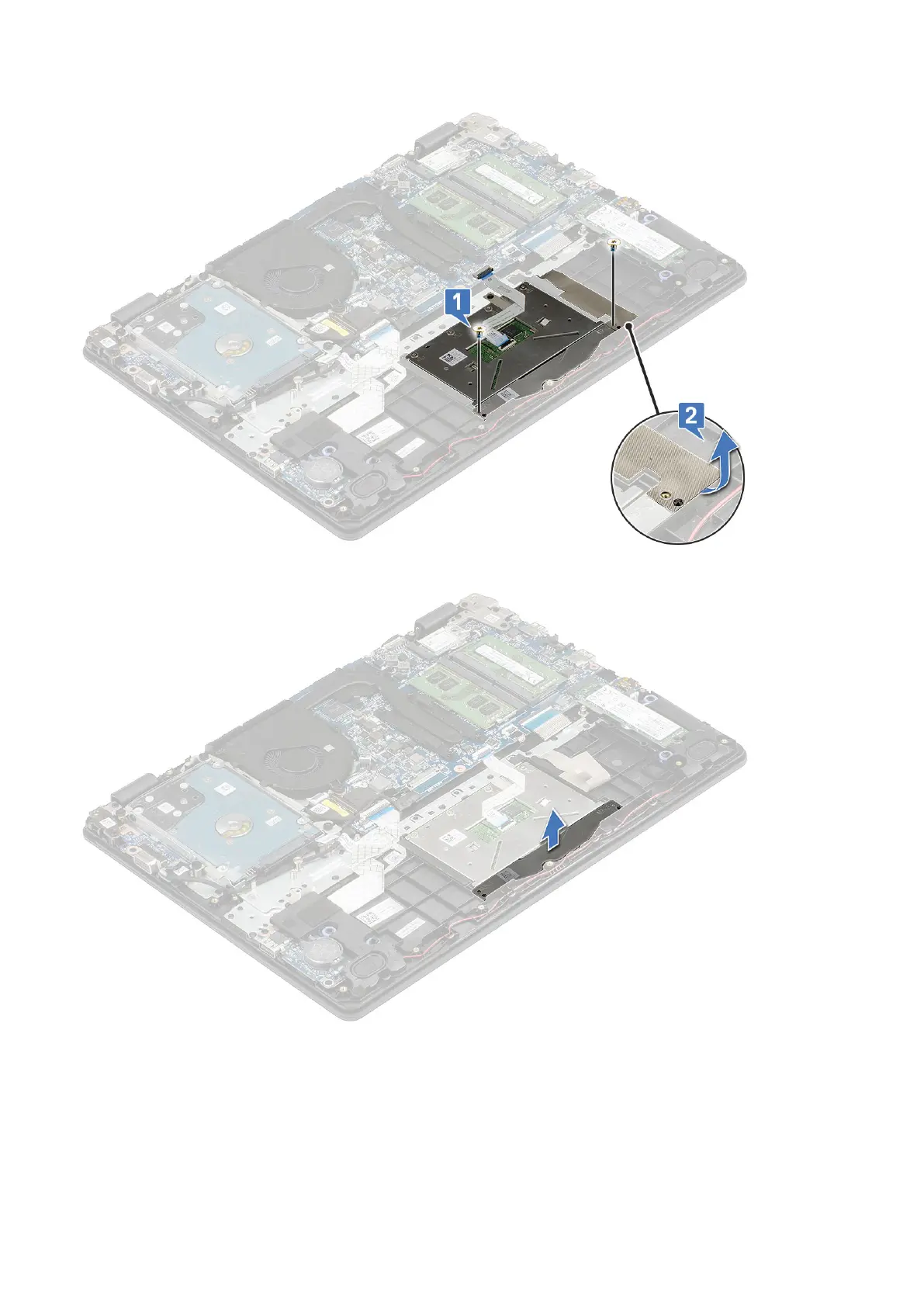

5. Lift the metal bracket from the system.
6. Disconnect the touchpad cable from its connector on the system board [1] and Peel off the adhesive that secures the TP
cable to the touchpad to release it from the touchpad.
7. Peel off the adhesive tape that secures the touchpad panel [2].
Disassembly and reassembly
37
