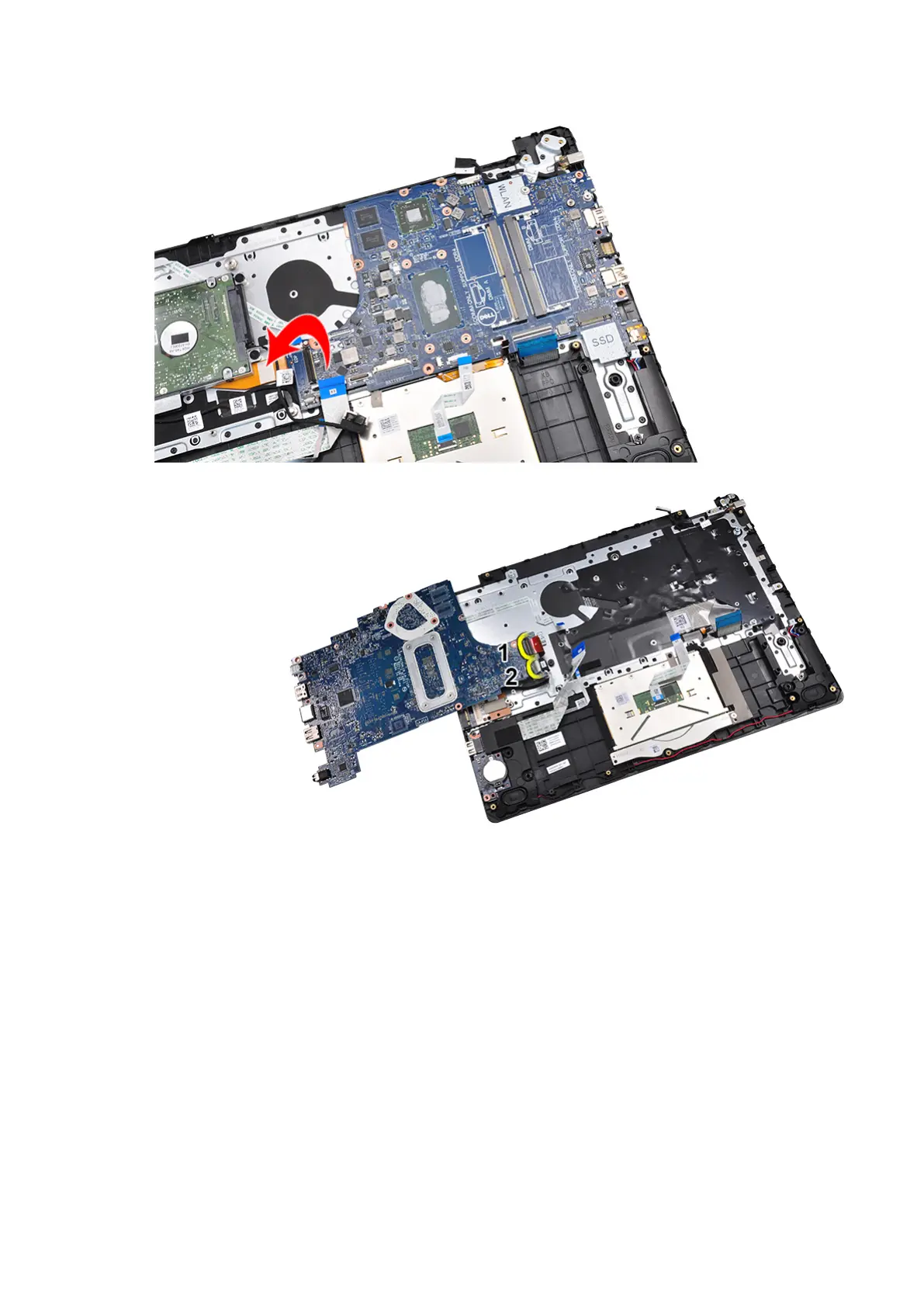

a. Carefully lift the right side of the system board and flip it
over.
b. Disconnect the WWAN daughter board FPC [1] and VGA daughter board cable [2] from the connectors on the bottom
side of the system board.
c. Lift the system board from the system.
44
Disassembly and reassembly
