Dell P91G - Page 16

To Next Page

To Previous Page

NOTE: The following step is applicable only if you want to further remove any other component from your computer.

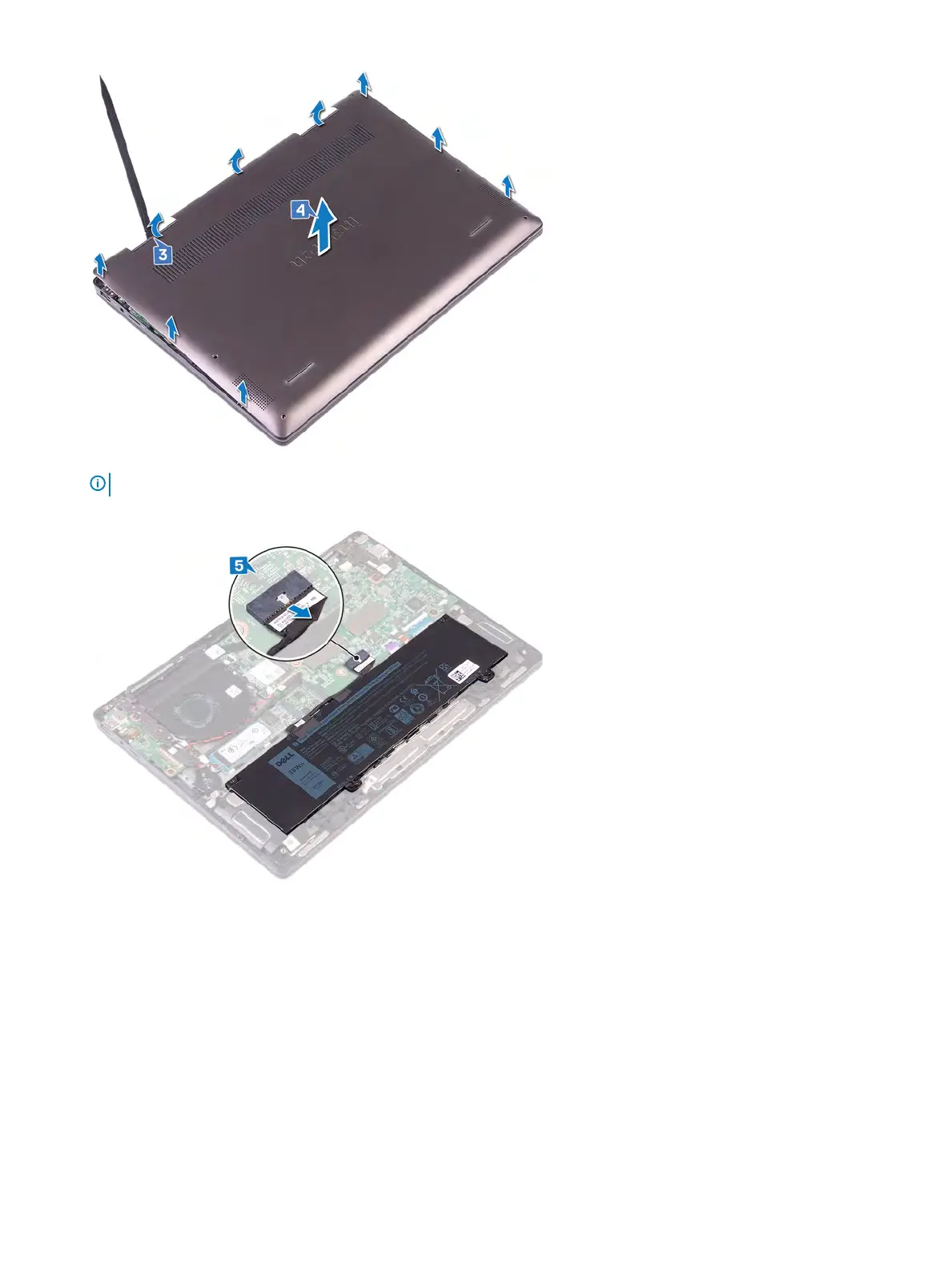

5 Disconnect the battery cable from the system board.

16 Removing the base cover
