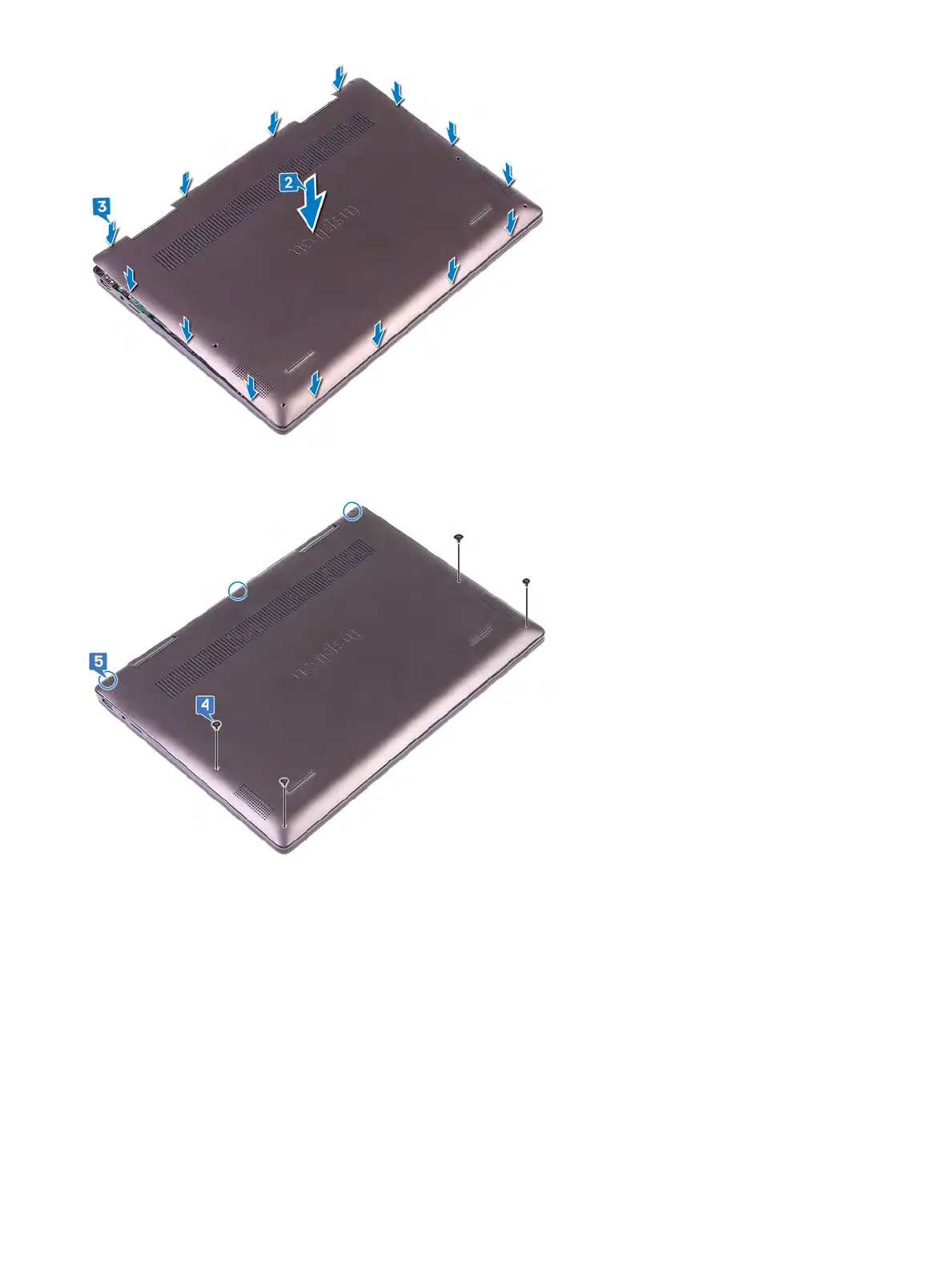

4 Replace the four screws (M2x5) that secure the base cover to the palm-rest assembly.

5 Tighten the three captive screws that secure the base cover to the palm-rest assembly.

18 Replacing the base cover
