1060 Configuring VRRP
VRRP Configuration Example
This section contains the following VRRP examples:
VRRP with Load Sharing
VRRP with Route and Interface Tracking
VRRP with Load Sharing
In Figure 37-9, two L3 PowerConnect switches are performing the routing for
network clients. Router A is the default gateway for some clients, and Router
B is the default gateway for other clients.

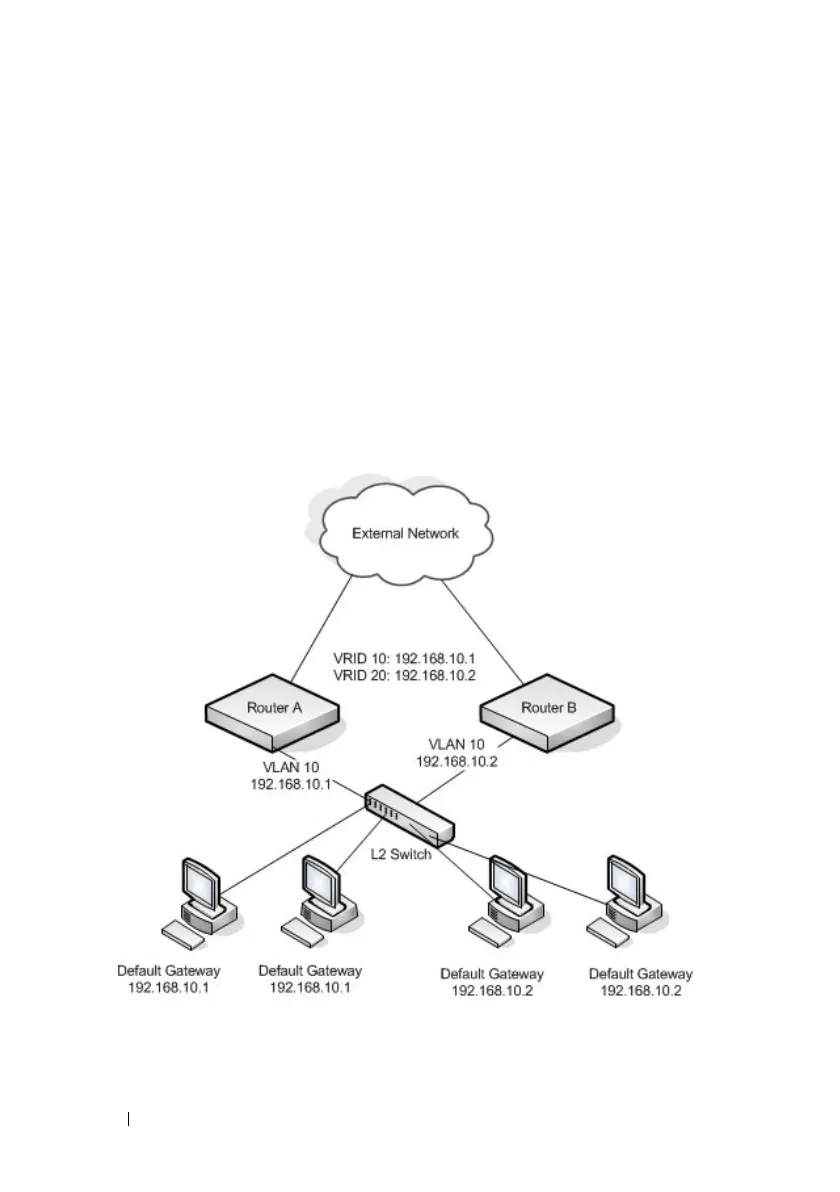

Figure 37-9. VRRP with Load Sharing Network Diagram
