Case Study on a Real-World Network Topology
Multicast Snooping Case Study

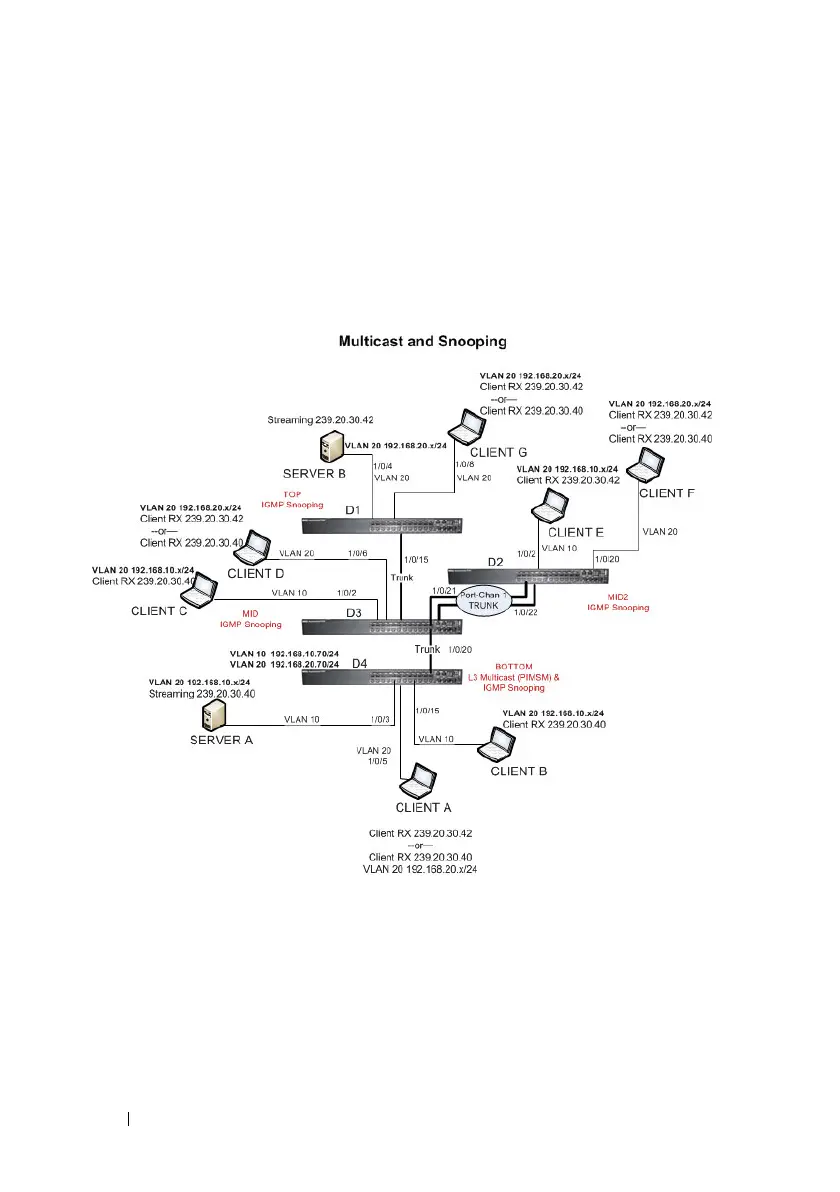

Figure 26-35 shows the topology that the scenarios in this case study use.
Figure 26-35. Case Study Topology
The topology in Figure 26-35 includes the following elements:
• Snooping Switches: D1, D2, D3 with IGMP snooping enabled on VLANs
10, 20
• Multicast Router: D4 with PIM-SM enabled and IGMP snooping disabled
on VLANs 10, 20
• Multicast Listeners: Client A-G
