1190 Managing IPv4 and IPv6 Multicast
Multicast Admin Boundary Configuration
The definition of an administratively scoped boundary is a way to stop the
ingress and egress of multicast traffic for a given range of multicast addresses
on a given routing interface. Use the Admin Boundary Configuration
page to
configure a new or existing administratively scoped boundary. To see this
page, you must have configured a valid routing interface and multicast.
To display the page, click IPv4 Multicast
→
Multicast
→
Admin Boundary
Configuration in the navigation panel.

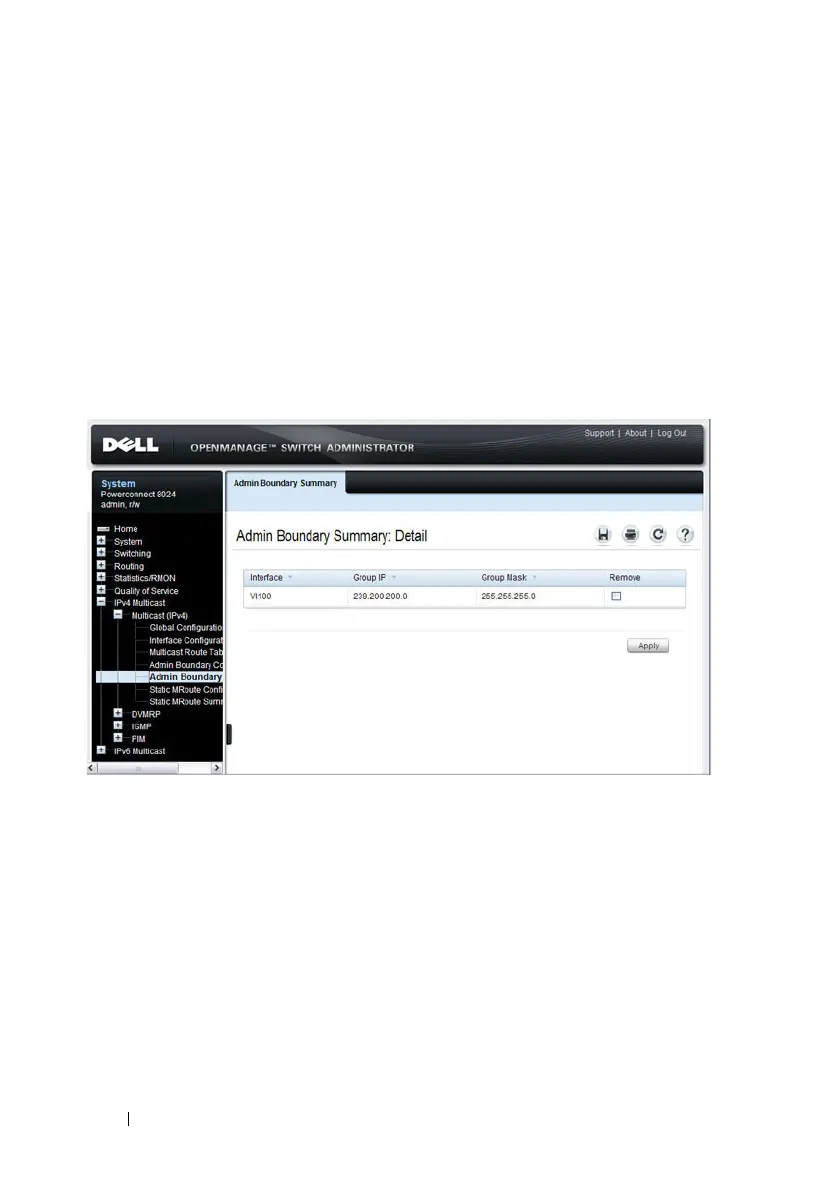

Figure 43-12. Multicast Admin Boundary Configuration
