Monitoring and Logging System Information 215

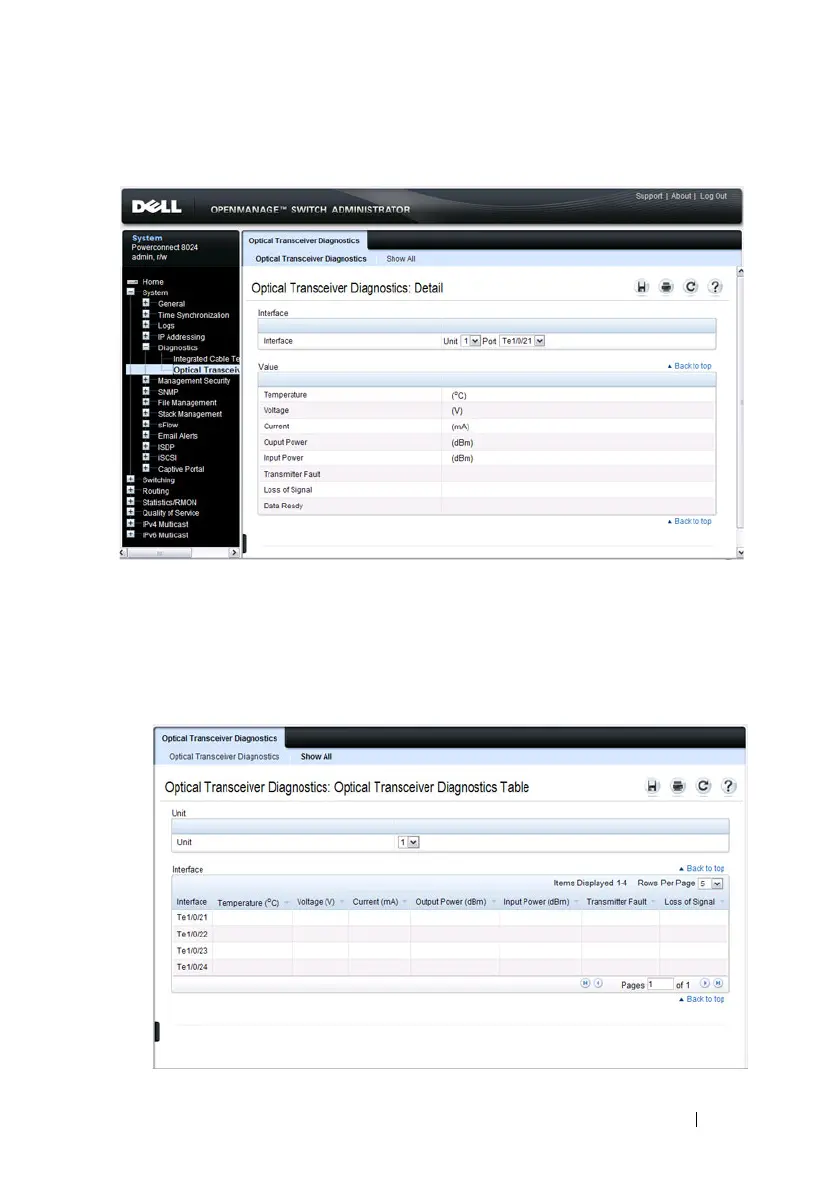

Figure 11-6. Optical Transceiver Diagnostics

To view a summary of all optical transceiver diagnostics tests performed, click

the Show All link.

Figure 11-7. Optical Transceiver Diagnostics Summary
