322 Managing Images and Files
4
To upload by using HTTP, click
Apply
. A dialog box opens to allow you to
open or save the file.

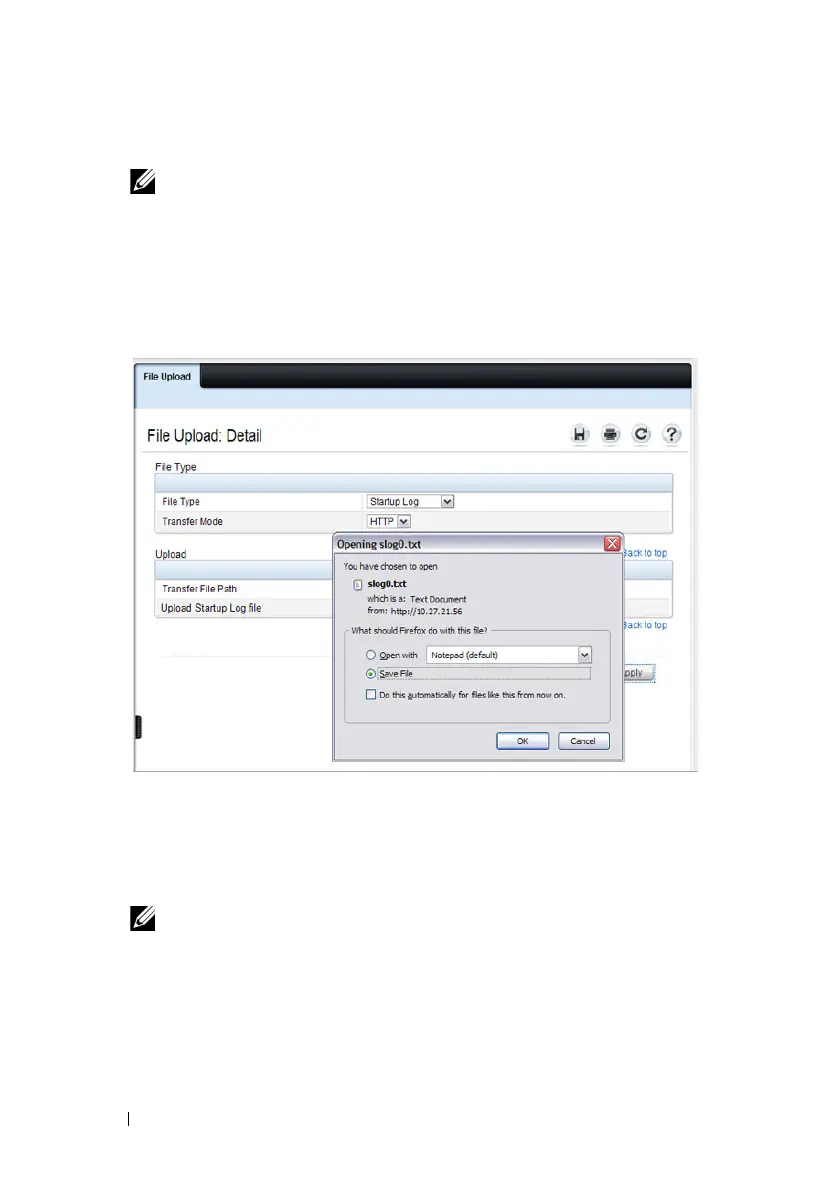

Figure 14-7. File Upload
5
To upload by using any method other than HTTP, enter the IP address of
the server and specify a name for the file. For SFTP and SCP, provide the
user name and password.
6
Click
Apply
to begin the upload.
7
The file is uploaded to the specified location on the remote server.
NOTE: If you are using HTTPS to manage the switch, the download method
will be HTTPS.
NOTE: For some file uploads and methods, the page refreshes and a
transfer status field appears to indicate the number of bytes transferred. The
web interface is blocked until the file upload is complete.
