Configuring VLANs 569
To perform additional port configuration, such as making the port a trunk
port, use the Port Settings page.

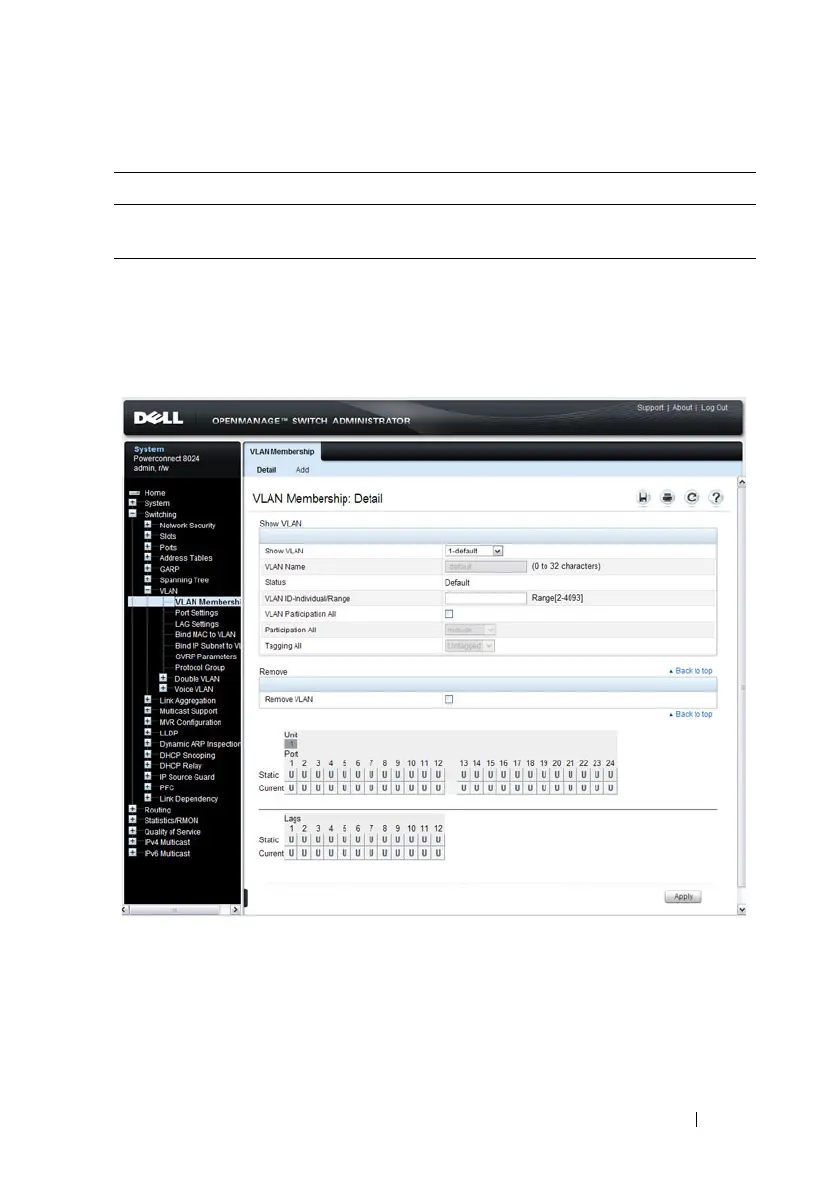

Figure 22-4. VLAN Membership
Adding a VLAN
To create a VLAN:
1
Open the
VLAN Membership
page.
2
Click
Add
to display the
Add VLAN
page.
Blank Blank: the interface is not a VLAN member. Packets in this VLAN are
not forwarded on this interface.
Table 22-8. VLAN Port Membership Definitions
Port Control Definition
