732 Configuring L2 Multicast Features
To view a summary of the MVR interface configuration, click Show All.

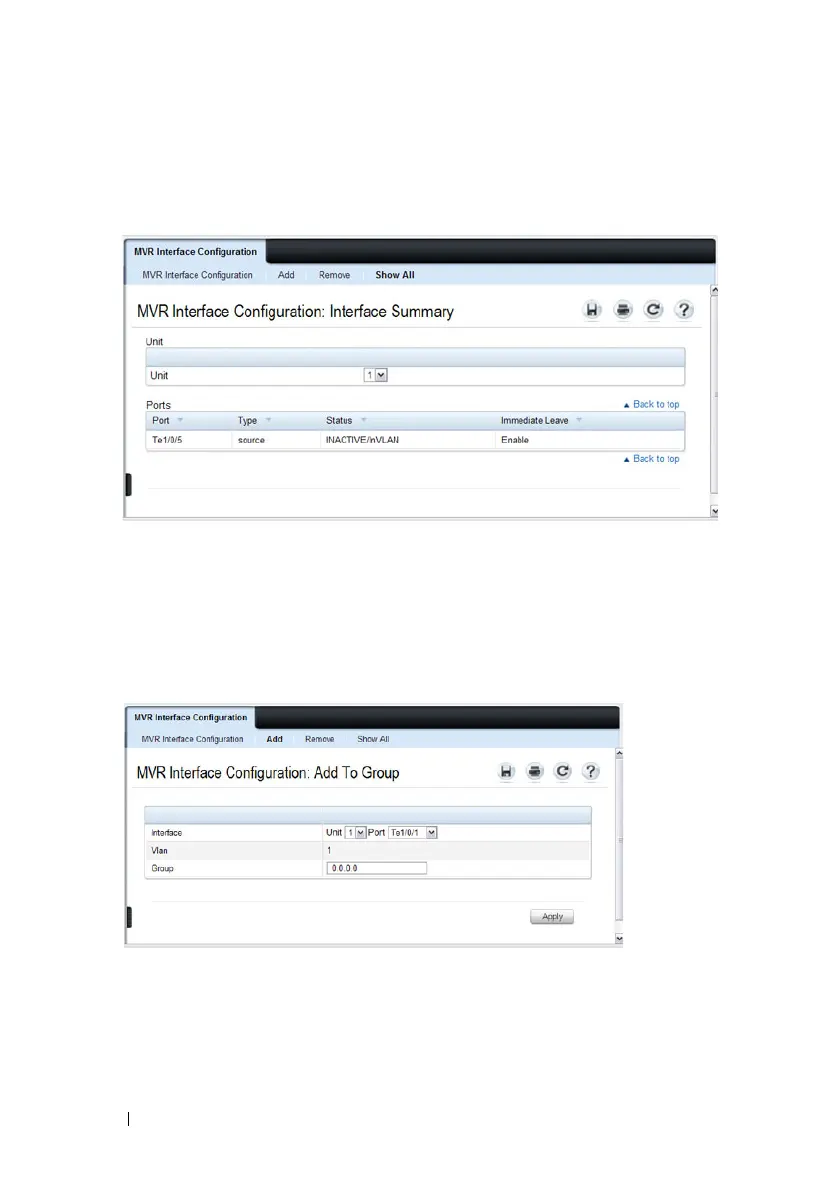

Figure 26-26. MVR Interface Summary
Adding an Interface to an MVR Group
To add an interface to an MVR group:
1
From the MVR Interface page, click Add .
Figure 26-27. MVR - Add to Group
2 Select the interface to add to the MVR group.
3 Specify the MVR group IP multicast address.
4 Click Apply .
