738 Configuring L2 Multicast Features

Click

Show All

to display the

GMRP Port Configuration Table

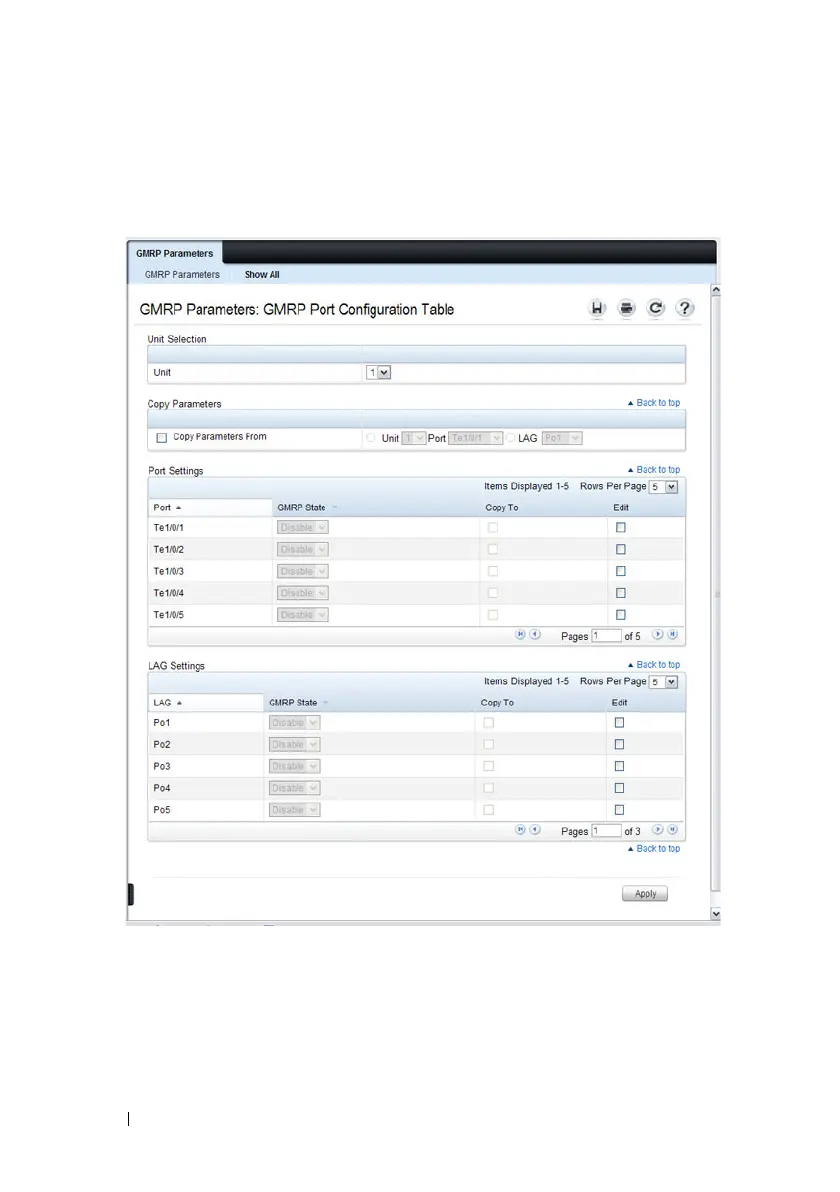

Figure 26-33. GMRP Port Configuration Table

For each port or LAG to configure, select the check box in the

Edit

column in the row associated with the port.

Specify the desired timer values.

Click

Apply
