Dell PowerConnect 8164F User Manual

Configuring DHCPv6 Server and Relay Settings 1099
Prefix Delegation Configuration
Use the Prefix Delegation Configuration page to configure a delegated prefix
for a pool. At least one pool must be created using DHCPv6 Pool
Configuration before a delegated prefix can be configured.
To display the page, click Routing
→ IPv6 → DHCPv6 → Prefix Delegation
Configuration in the navigation panel.

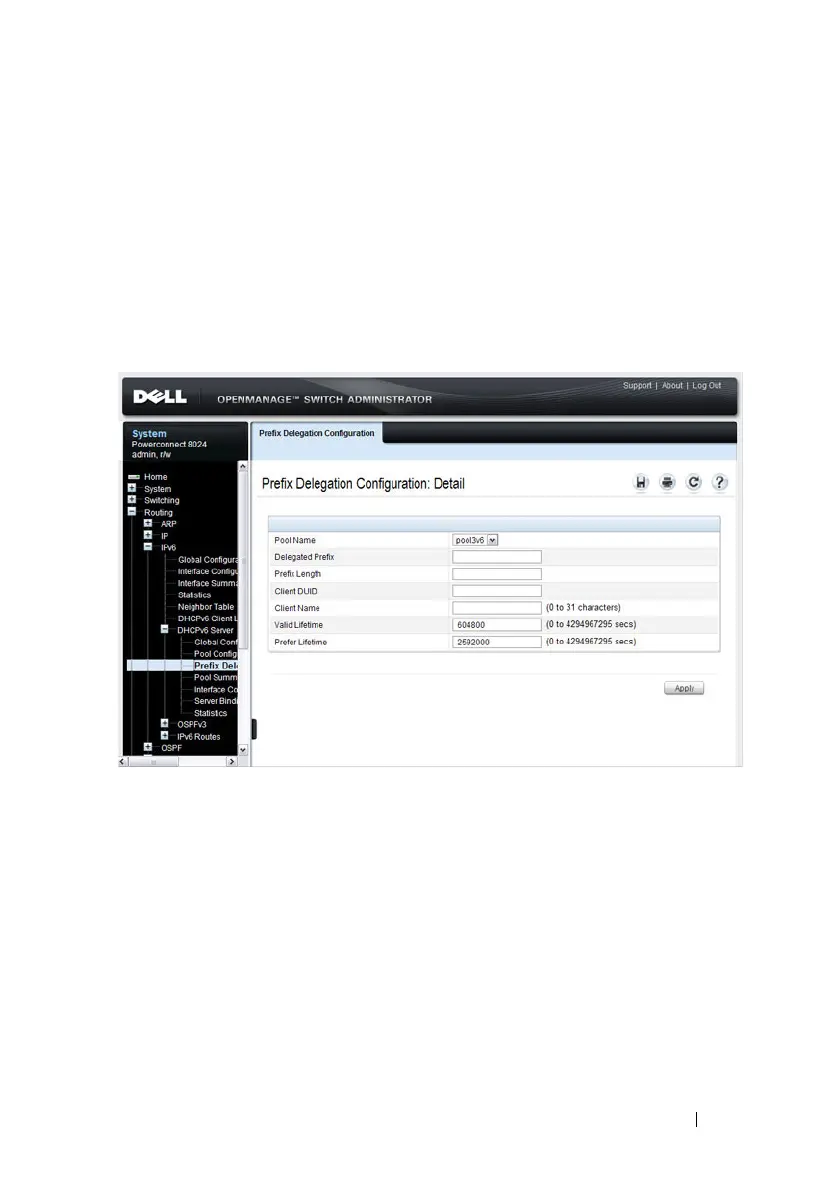

Figure 39-5. Prefix Delegation Configuration

Dell PowerConnect 8164F Specifications

General

Enclosure Type	Rack-mountable - 1U
Power Device	Internal power supply
Installed Qty	1
Power Redundancy	Optional
Power Supply	AC 120/230 V (50/60 Hz)
Width	17.3 in
Height	1.7 in
Device Type	Switch
Forwarding Rate	960 Mpps
MAC Address Table Size	128000 entries
Routing Protocol	OSPF, RIP-1, RIP-2, BGP, VRRP, OSPFv3, RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Management	Web based management
Features	Flow control, VLAN support, DHCP support, BOOTP support, port mirroring, IPv6 support, DiffServ support, Weighted Round Robin (WRR) queuing, Access Control List (ACL) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Jumbo Frame Support	9KB
