Dell PowerConnect 8164F User Manual

Configuring L2 Multicast Features 727
MLD Snooping VLAN Querier Status
Use the VLAN Querier Status page to view the MLD snooping querier
settings for individual VLANs.
To display the VLAN Querier Status page, click Switching
→ Multicast
Support
→ MLD Snooping → VLAN Querier Status in the navigation
menu.

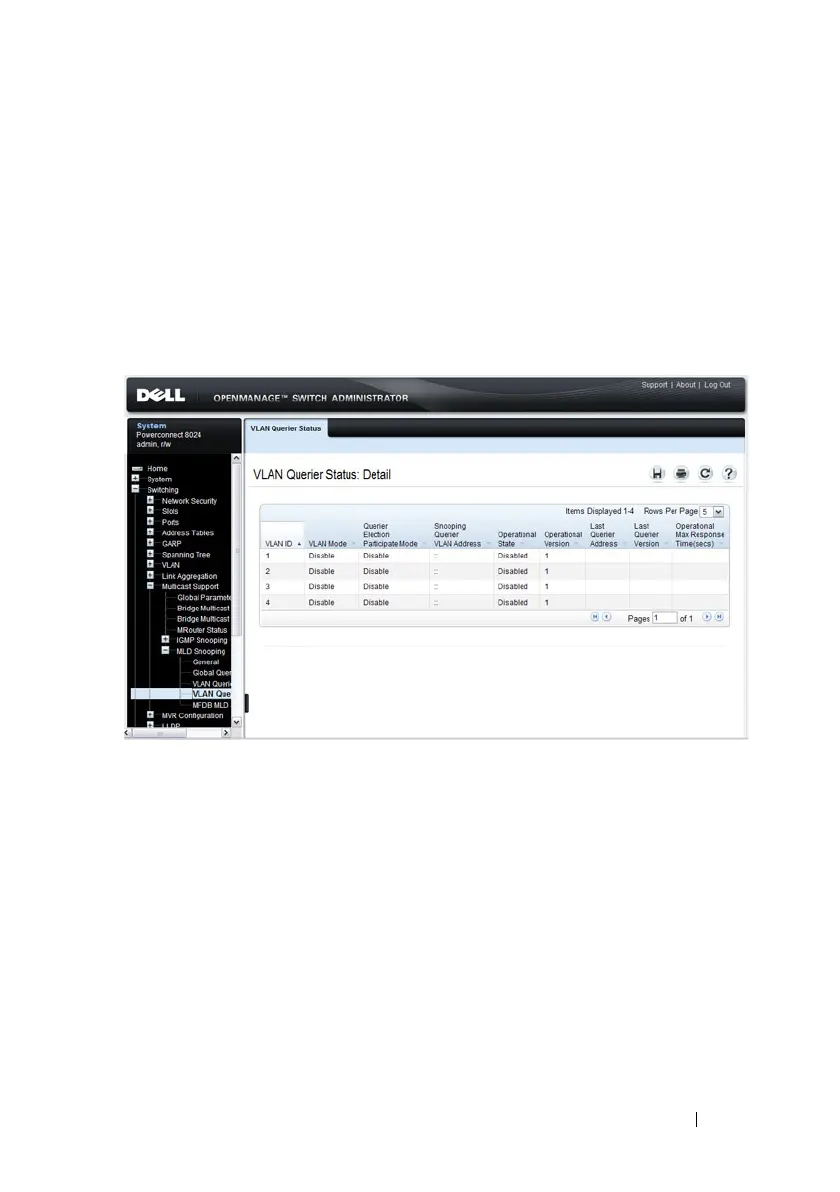

Figure 26-20. MLD Snooping VLAN Querier Status

Dell PowerConnect 8164F Specifications

General

Enclosure Type	Rack-mountable - 1U
Power Device	Internal power supply
Installed Qty	1
Power Redundancy	Optional
Power Supply	AC 120/230 V (50/60 Hz)
Width	17.3 in
Height	1.7 in
Device Type	Switch
Forwarding Rate	960 Mpps
MAC Address Table Size	128000 entries
Routing Protocol	OSPF, RIP-1, RIP-2, BGP, VRRP, OSPFv3, RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Management	Web based management
Features	Flow control, VLAN support, DHCP support, BOOTP support, port mirroring, IPv6 support, DiffServ support, Weighted Round Robin (WRR) queuing, Access Control List (ACL) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Jumbo Frame Support	9KB
