Hardware Overview 91

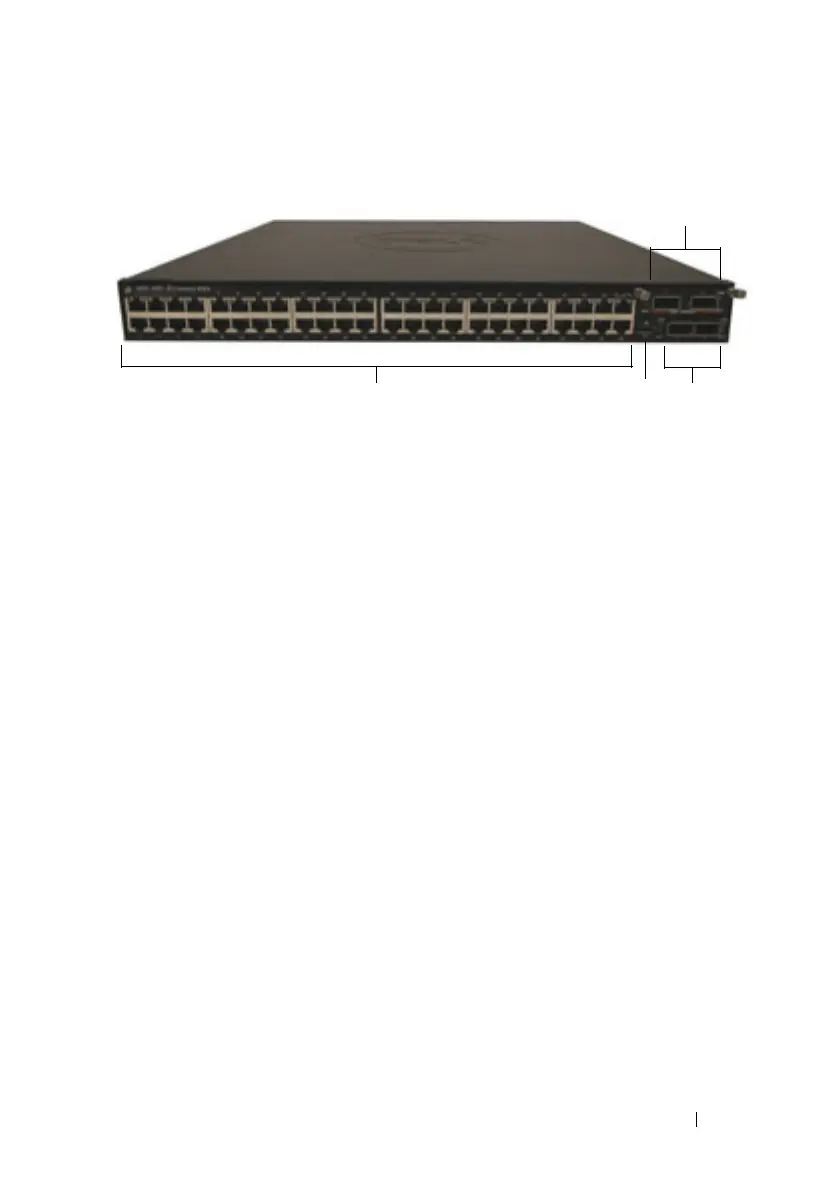

Figure 3-5. PowerConnect 8164 Front Panel
PowerConnect 8164 switches can be stacked with other PowerConnect 81xx
switches using the 10G or 40G SFP+ or QSFP modules in the module bay or
fixed QSFP ports.
PowerConnect 8164F Front Panel
The PowerConnect 8164F front panel provides the following ports:
• 48 x 10GbE fiber ports
• A USB port. See "USB Port (Power Connect 8100-series switches only)" on
page 94.
• Two fixed QSFP ports, each supporting 4 x 10G or 1 x 40G connections
• One module bay that supports the following modules:
– 2 x 40 Gig QSFP (each QSFP may be configured as 4 x 10 Gig ports)
–4 x SFP+ module
– 4 x 10GBaseT module
See "Hot-Pluggable Interface Modules" on page 92 for more information.
10GbE Copper Ports
USB port
Fixed QSFP
ports
Module bay
