Dell PowerConnect 8164F User Manual

910 Configuring IP Routing
Route Preferences Configuration
Use the Route Preferences Configuration page to configure the default
preference for each protocol (for example 60 for static routes). These values
are arbitrary values that range from 1 to 255, and are independent of route
metrics. Most routing protocols use a route metric to determine the shortest
path known to the protocol, independent of any other protocol.
To display the page, click Routing
→ Router → Route Preferences
Configuration in the navigation panel.

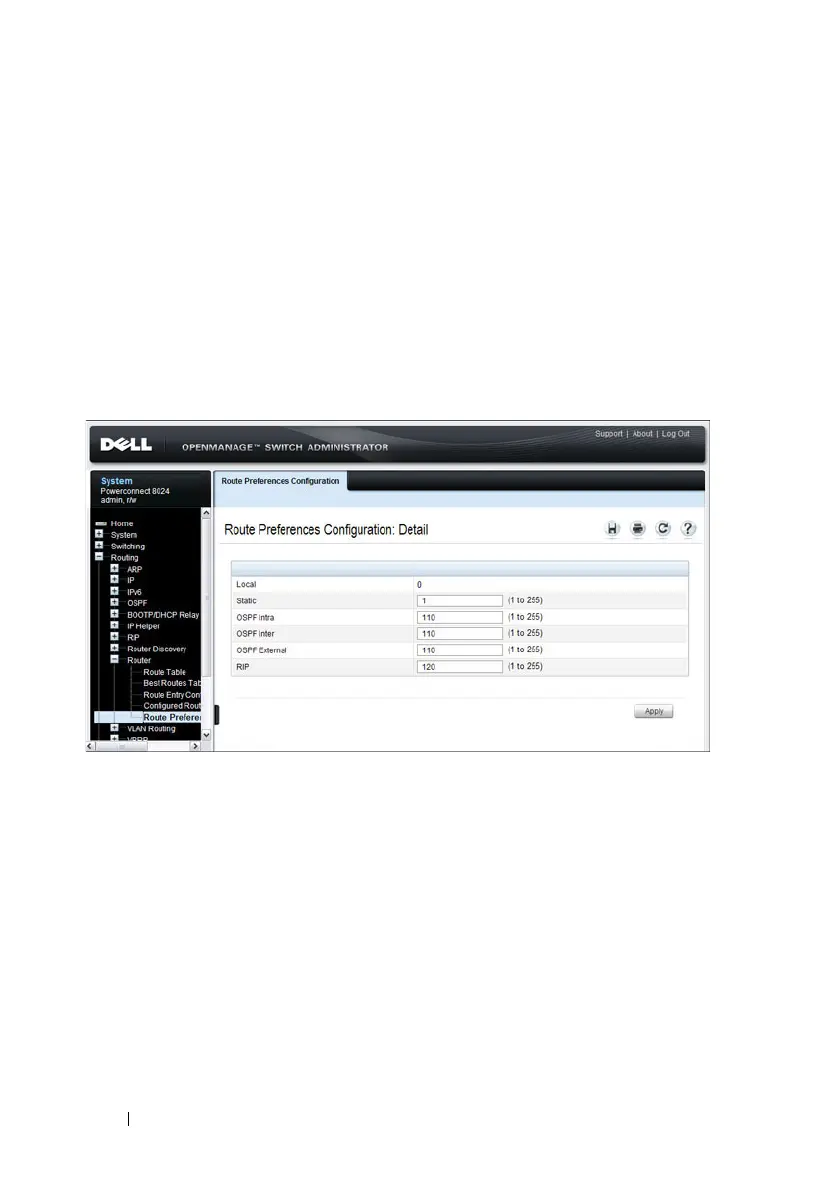

Figure 33-12. Router Route Preferences Configuration

Dell PowerConnect 8164F Specifications

General

Enclosure Type	Rack-mountable - 1U
Power Device	Internal power supply
Installed Qty	1
Power Redundancy	Optional
Power Supply	AC 120/230 V (50/60 Hz)
Width	17.3 in
Height	1.7 in
Device Type	Switch
Forwarding Rate	960 Mpps
MAC Address Table Size	128000 entries
Routing Protocol	OSPF, RIP-1, RIP-2, BGP, VRRP, OSPFv3, RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Management	Web based management
Features	Flow control, VLAN support, DHCP support, BOOTP support, port mirroring, IPv6 support, DiffServ support, Weighted Round Robin (WRR) queuing, Access Control List (ACL) support, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Jumbo Frame Support	9KB
