Configuring L2 Multicast Features 725

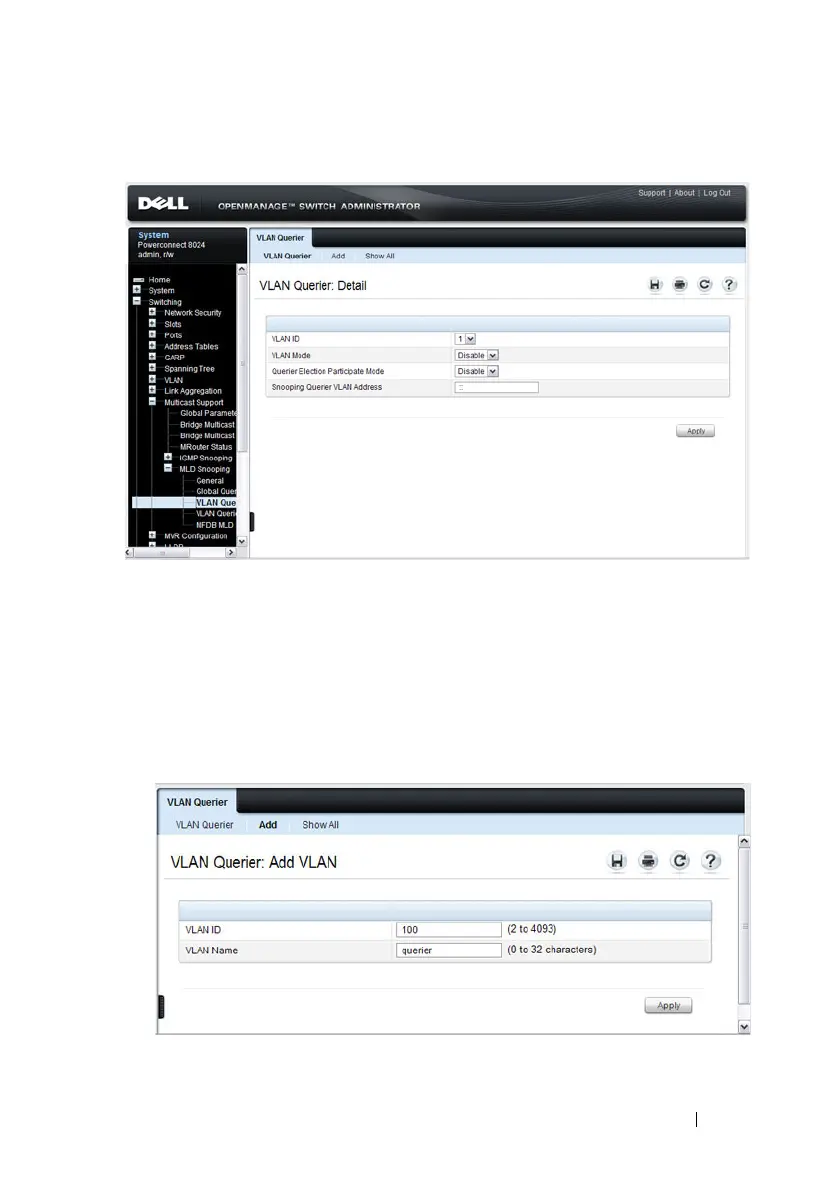

Figure 26-17. MLD Snooping VLAN Querier

Adding a New VLAN and Configuring its MLD Snooping VLAN Querier Settings

To configure an MLD snooping VLAN querier:

From the

VLAN Querier

page, click

Add

The page refreshes, and the

Add VLAN

page displays.

Figure 26-18. Add MLD Snooping VLAN Querier

Enter the VLAN ID and, if desired, an optional VLAN name.
