140 Installing System Components
5
Disconnect the SD module cable.
6
Pull back slightly on the tabs at the edge of the card and gently lift the
edge of the card off of the retention standoffs.
7
Install the I/O card. See "Installing the I/O Card" on page 135.
8
Close the system. See "Closing the System" on page 90.
9
Reconnect the system and peripherals to their power sources, and turn
them on.

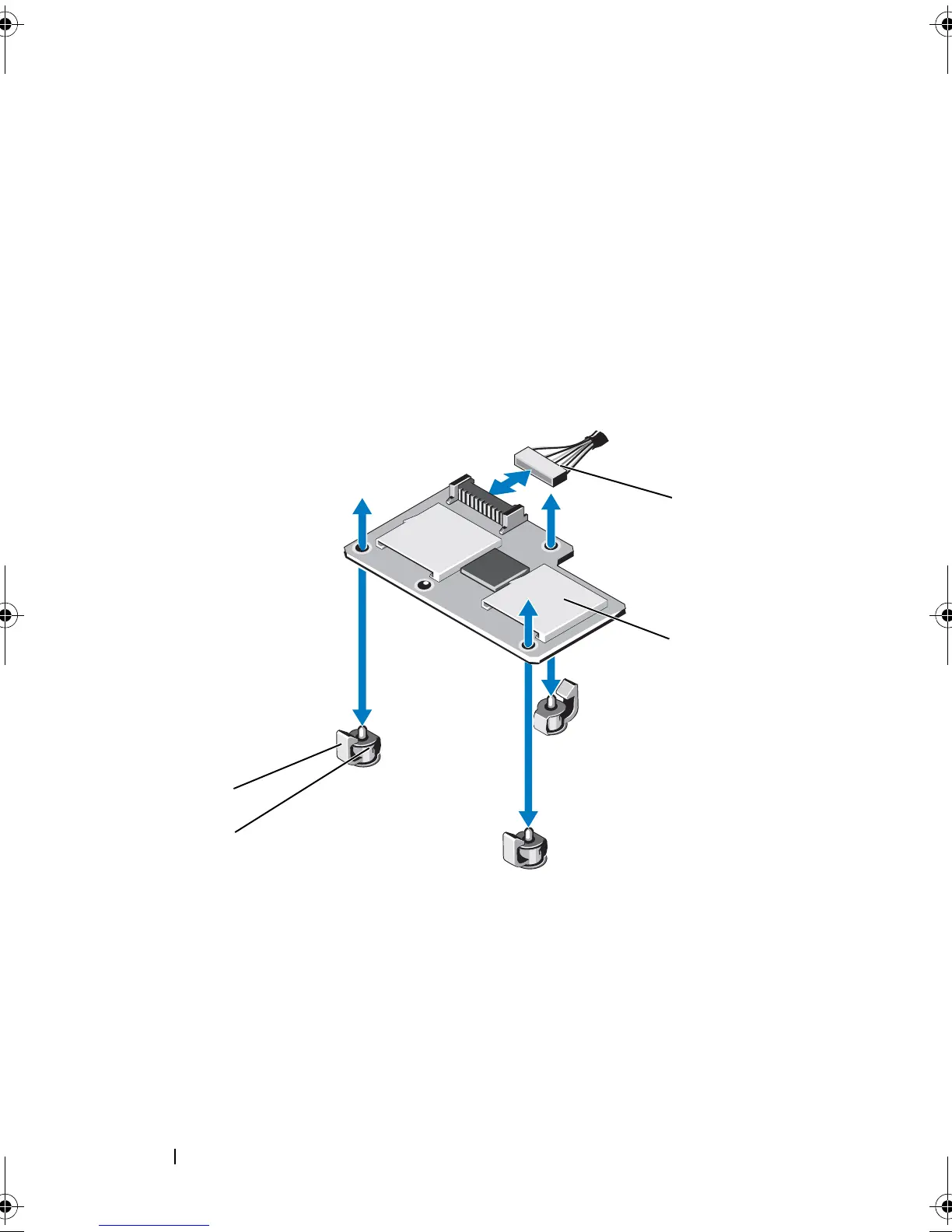

Figure 3-26. Removing and Installing the Internal Dual SD Module
1 retention standoff posts (3) 2 retention standoff tabs (3)
3 SD module cable 4 dual SD module
