Front Bezel (Optional)
Removing the Front Bezel
1 Unlock the keylock at the left end of the bezel.
2 Lift up the release latch next to the keylock.
3 Rotate the left end of the bezel away from the front panel.
4 Unhook the right end of the bezel and pull the bezel away from
the system.

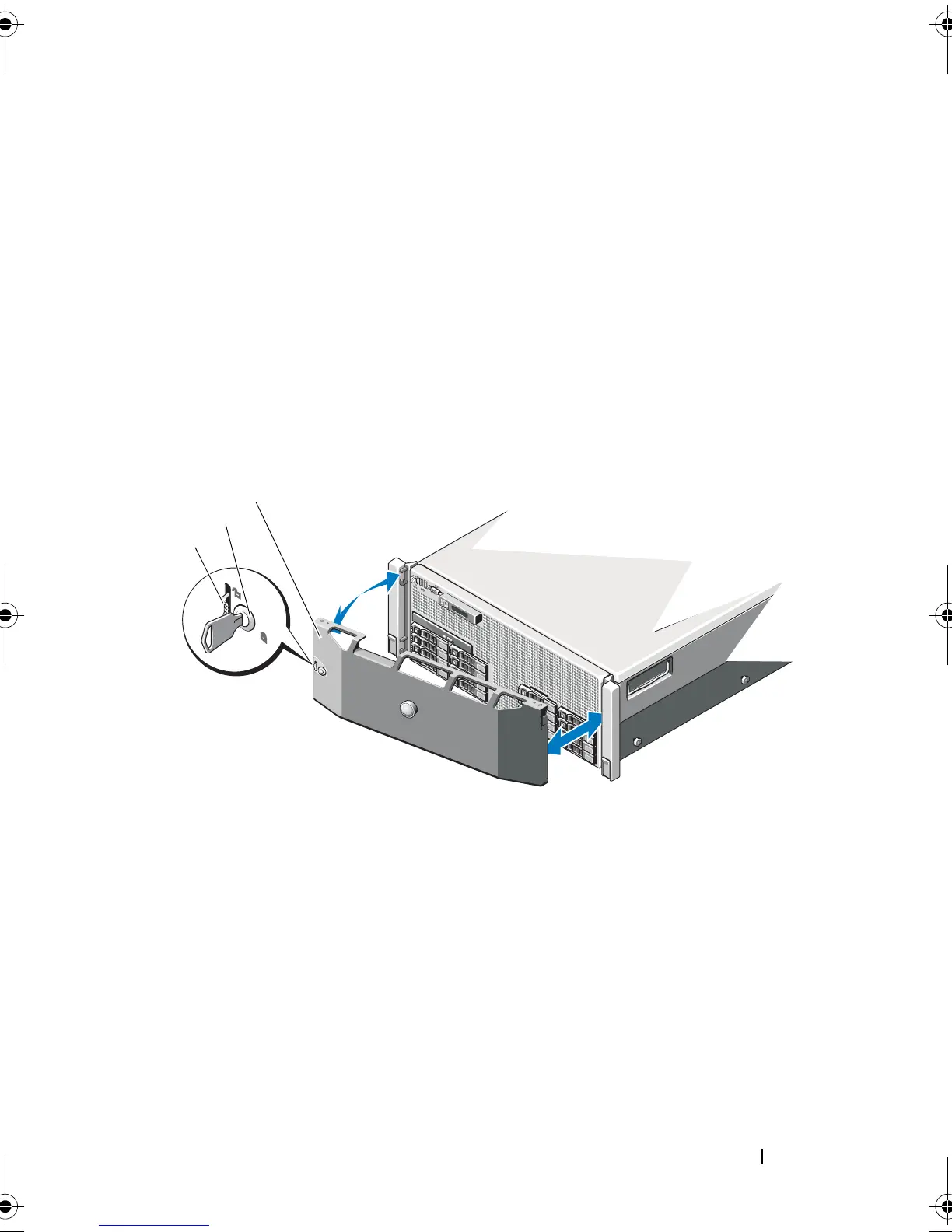

Figure 3-2. Removing and Installing the Front Bezel
Installing the Front Bezel
1 Hook the right end of the bezel onto the chassis.
2 Fit the free end of the bezel onto the system and secure the bezel with the
keylock. See Figure 3-2.
1 release latch 2 key lock
3front bezel
