System Identification Panel
Removing the System Identification Panel
1
If applicable, remove the front bezel. See "Removing the Front Bezel" on
page 87.
2
Pull the system identification panel out of its slot in the chassis, until it is
in the lock position. See Figure 3-3. The system identification panel is
located above the hard drive slot 8.
3
To release the left portion of the system identification panel, pull the panel
to the right until it disengages from the slot in the chassis.
4
To release the right portion of the system identification panel, pull the
panel to the left until it disengages from the slot in the chassis.

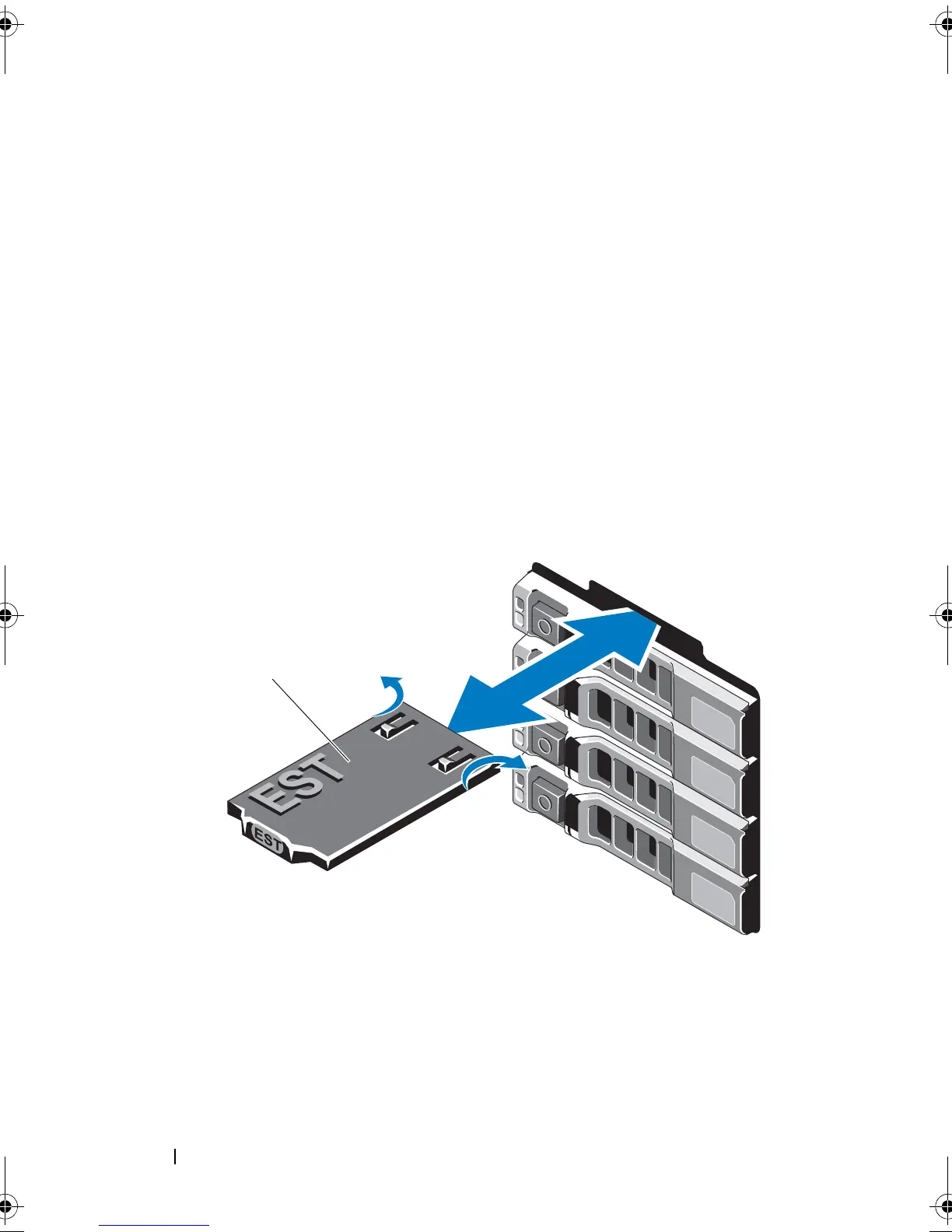

Figure 3-3. Removing and Installing the System Identification Panel
1 system identification panel
