90 Installing System Components

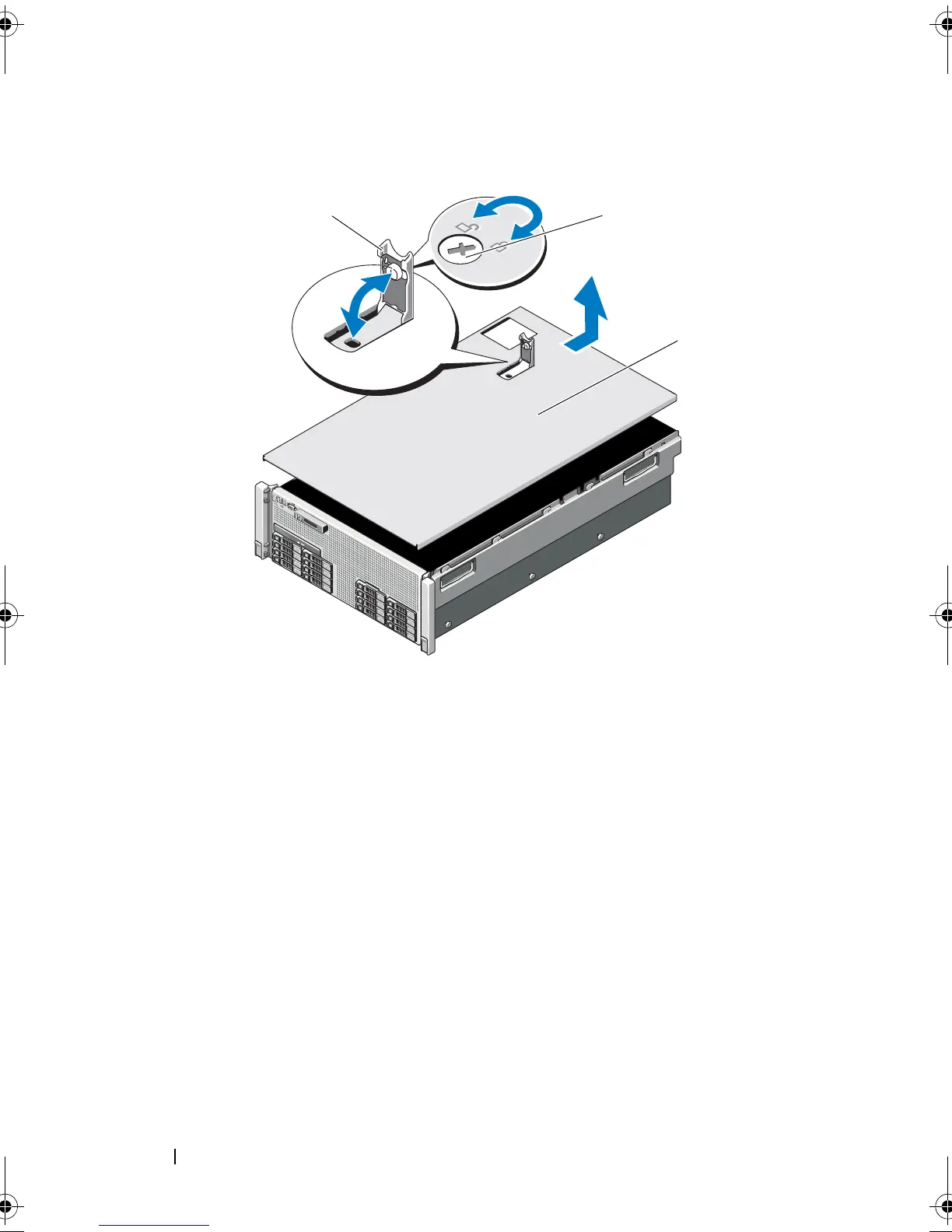

Figure 3-4. Opening and Closing the System
Closing the System
1
Place the cover onto the chassis and offset it slightly toward the back of the
system, so that the chassis hooks on the back edge of the cover fit over the
corresponding slots on the back edge of the chassis. See Figure 3-4.
2
Slide the cover toward the front of the chassis till it snaps in position.
3
Push down the latch to lever the cover into the closed position.
4
Rotate the latch release lock in a clockwise direction to secure the cover.
1 latch 2 latch release lock
3cover
