158 Installing System Components

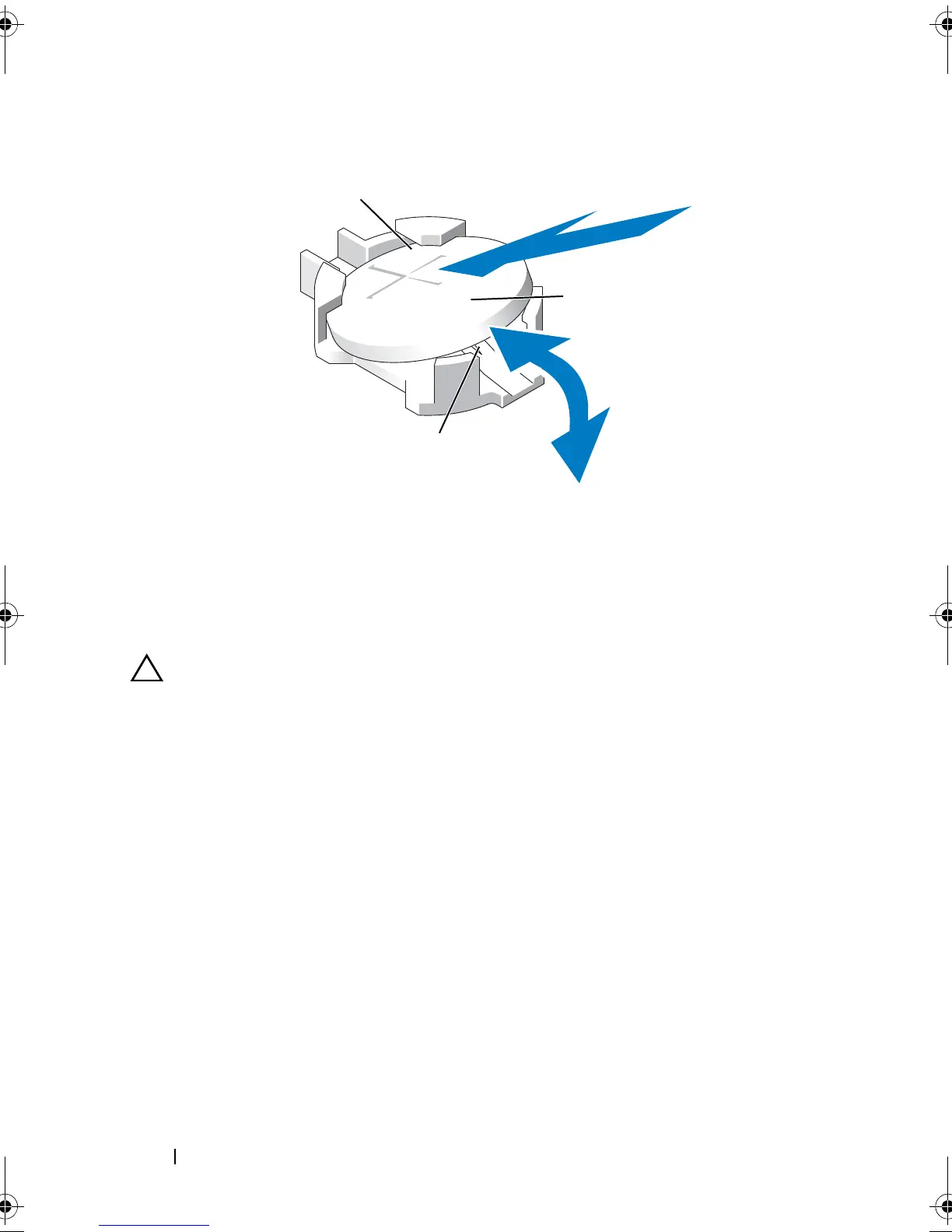

Figure 3-33. Replacing the System Battery
3
Locate the battery socket. See "System Board Connectors" on page 198.
CAUTION: To avoid damage to the battery connector, you must firmly support the
connector while installing or removing a battery.
4
To remove the battery, support the battery connector by pressing down
firmly on the positive side of the connector.
5
Press the battery toward the positive side of the connector and lift it up out
of the securing tabs at the negative side of the connector.
6
To install a new system battery, support the battery connector by pressing
down firmly on the positive side of the connector.
7
Hold the battery with the "+" facing up and slide it under the securing
tabs at the positive side of the connector.
8
Press the battery straight down into the connector until it snaps into place.
9
Close the system. See "Closing the System" on page 90.
10
Reconnect the system to the electrical outlet and turn the system on,
including any attached peripherals.
1 positive side of battery connector 2 system battery
3 negative side of battery connector
