If applicable, remove the memory-riser blanks. See "Removing a Memory-
Riser Blank" on page 99.
5
Remove the memory risers. See "Removing a Memory Riser" on page 100.
6
Remove the cooling fan assembly. See "Removing the Cooling Fan
Assembly" on page 118.
7
Slide the board upwards and pull the board toward the front of the system
until the tabs on the board are free from the securing slots on the chassis.
See Figure 3-35.

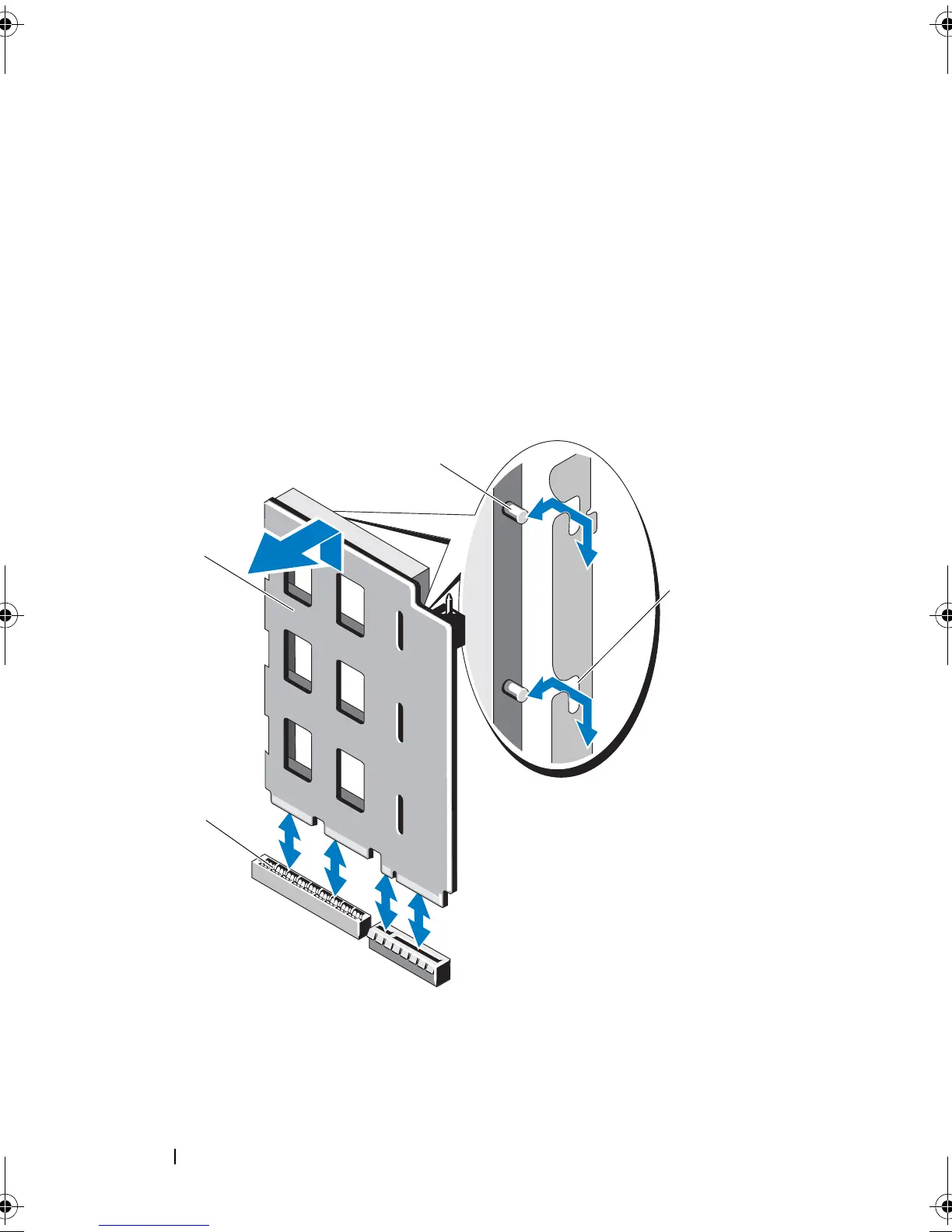

Figure 3-35. Power Distribution Board
1 power distribution board connector 2 power distribution board
3 tabs (2) 4 securing slots (2)
