Installing System Components 169
12
Disconnect all cables from the system board.
13
Loosen the thumbscrew that secures the system board to the chassis.
14
Pull the blue release pin and slide the system board toward the front of the
system.
CAUTION: Do not lift the system board assembly by grasping a memory module,
processor, or other components.
15
Grasp the system board using the handle and the card guides. Angle the
system board toward the front of the system and lift the board out of the
chassis.

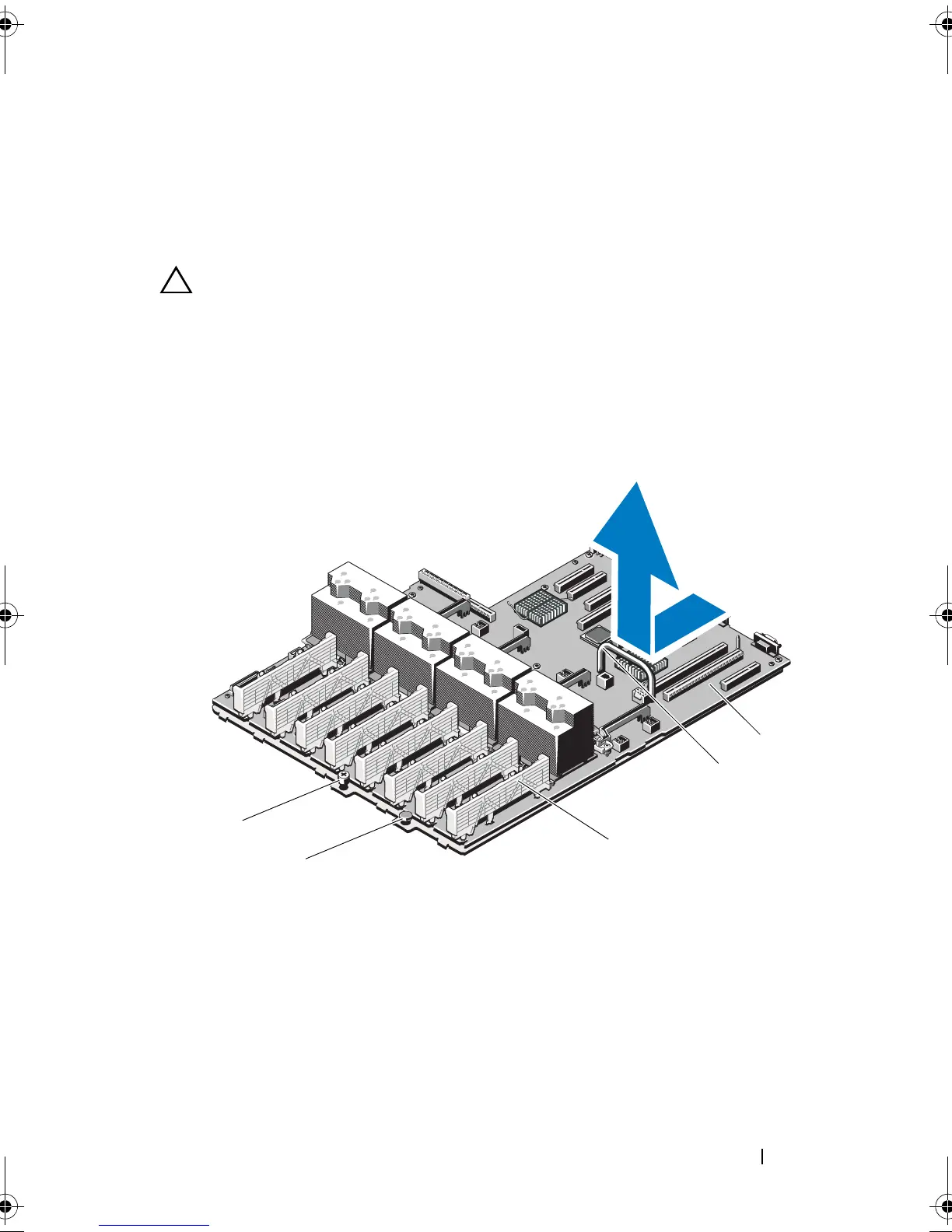

Figure 3-37. Removing and Installing the System Board
1 system board 2 handle
3 card guide 4 release pin
5thumbscrew
