Installing Blade Components 169

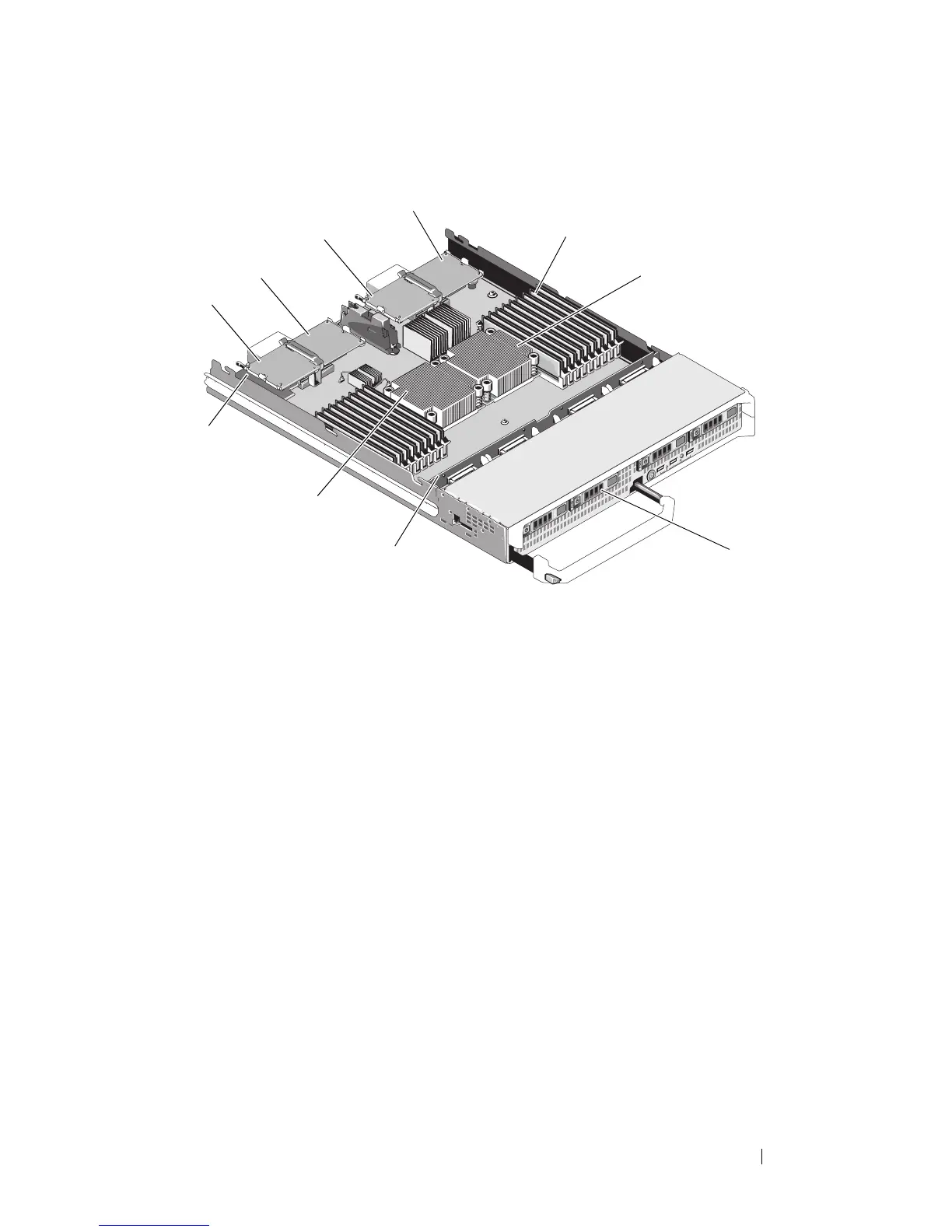

Figure 3-11. Inside a Full-Height Blade (PowerEdge M710)
1 optional mezzanine card 1 -
Fabric C
2 optional mezzanine card 2 -
Fabric B
3 optional mezzanine card 3 -
Fabric C
4 optional mezzanine card 4 -
Fabric B
5 memory modules 6 processor CPU2 and heat sink
7 hard drives (4) 8 hard-drive backplane
9 processor CPU1 and heat sink 10 iDRAC6 Enterprise card (under
mezzanine card)
