170 Installing Blade Components

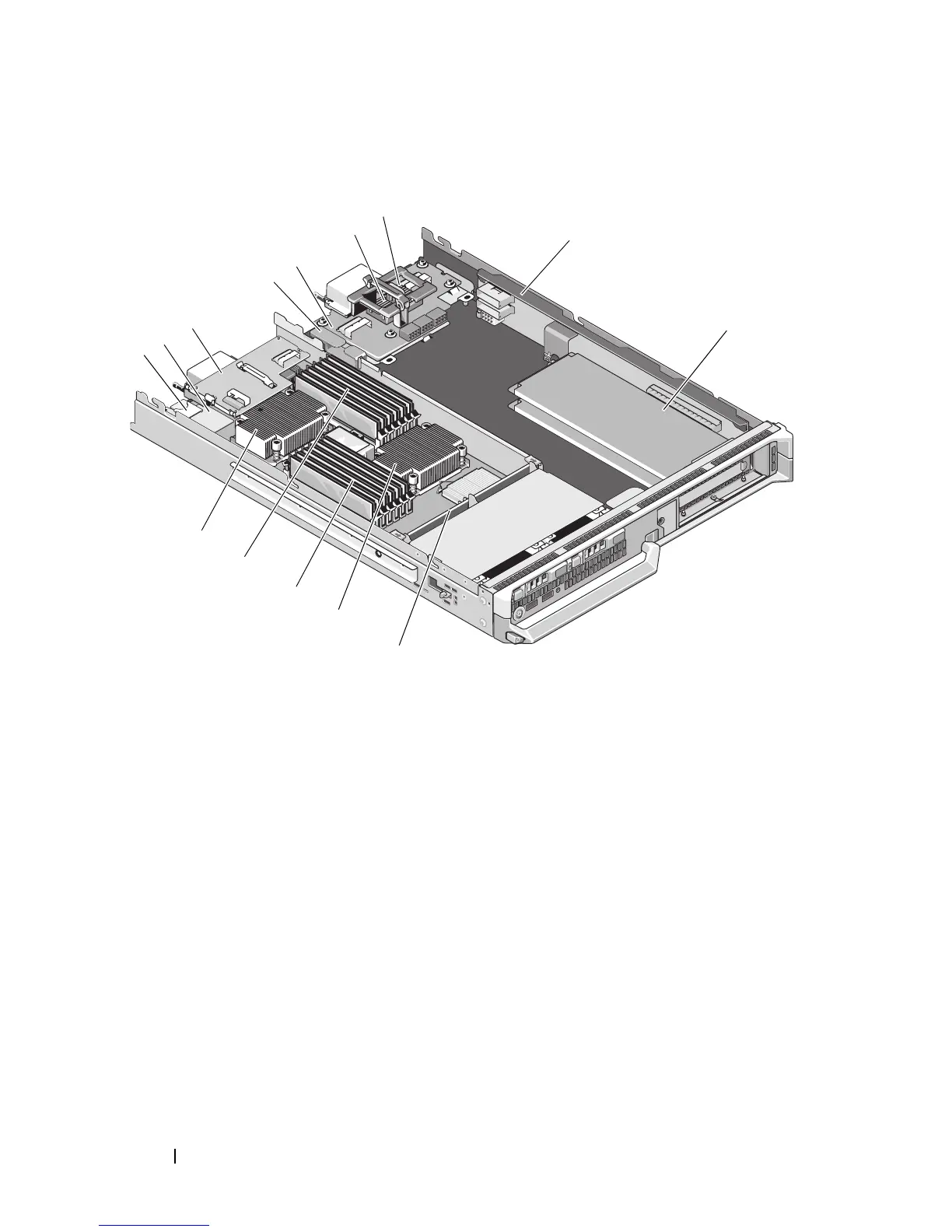

Figure 3-12. Inside a Full-Height Blade (PowerEdge M610x)
1 internal SD vFalsh card slot 2 iDRAC6 Enterprise card
3 mezzanine interface card 4 cable management clip
5 midplane interface card 6 optional mezzanine card
Mezz1_Fab_C1
7 optional mezzanine card -
Mezz2_Fab_B1
8PCIe riser
9 standard PCIe cards or PCIe
expansion-card blanks
10 hard-drive backplane
11 processor CPU2 and heat sink 12 memory modules (B1 to B6)
13 memory modules (A1 to A6) 14 processor CPU1 and heat sink
8
3
5
9
10
11
12
13
14
1
7
6
2
4
