Replacing an optional SD vFlash media card
1. Locate the SD vFlash media slot on the system.
2. To remove the SD vFlash media card, push the card inward to release it, and pull the card from the
card slot.

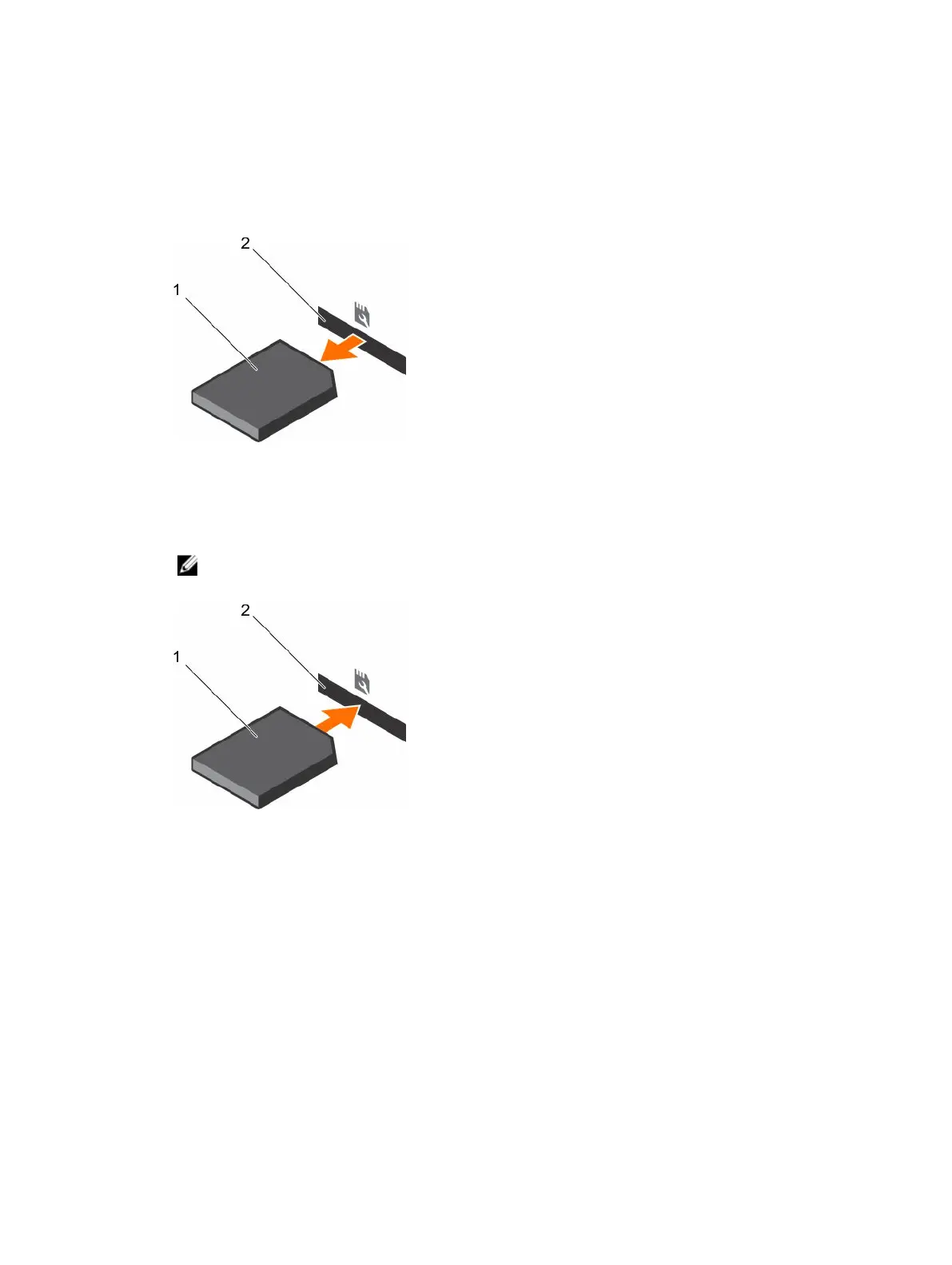

Figure 104. Removing the SD vFlash media card
1. SD vFlash media card 2. SD vFlash media card slot
3. To install an SD vFlash media card, with the label side facing up, insert the contact-pin end of the SD
vFlash media card into the card slot on the module.
NOTE: The slot is keyed to ensure correct insertion of the card.
4. Press the card inward to lock it into the slot.
Figure 105. Installing the SD vFlash media card
1. SD vFlash media card 2. SD vFlash media card slot
Control panel assembly
Removing the control panel assembly
Prerequisites
1. Follow the safety guidelines listed in the safety instructions section.
2. Keep the Phillips #2 screwdriver ready.
3. Follow the procedure listed in the Before working inside your system section.
