● Two pluggable AC or DC PSUs, except N3208PX-ON
● Three pluggable fan modules, except N3208PX-ON
● N3208PX-ON—One fixed AC PSU
● N3208PX-ON—One fan
● N3208PX-ON—Up to two external power adapters
● N3224PX-ON, N3248P-ON/E3248P-ON, and N3248PXE-ON/E3248PXE-ON—External power supply connectors to
connect the MPS-1S or MPS-3S shelf
● N3224T-ON, N3248X-ON, and N3248TE-ON—Normal and reverse airflow options
● System ground connector
● Switch-monitoring LEDs
Physical dimensions
The N3200-ON/E3200-ON Series switch has the following physical dimensions, excluding the PSU and fan tray handle:
● N3208PX-ON:
○ 43.5 mm x 279.4 mm x 312 mm (H x W x D)
○ 1.71 in x 11 in x 12.28 in (H x W x D)
● All N3200-ON/E3200-ON Series switches except the N3208PX-ON:
○ 43.5 mm x 434 mm x 400 mm (H x W x D)
○ 1.71 in x 17.09 in x 15.75 in (H x W x D)
(PSU and fan tray handle adds 30 mm or 1.18 in)
LED display
The N3200-ON/E3200-ON Series switch includes LED displays on the I/O and PSU sides of the switch. This section describes
open networking installation environment (ONIE) LED behaviors. Some LED behaviors may change after you install your
software.
LED behavior
The following N3200-ON/E3200-ON Series switch LED behavior is seen during ONIE operations:

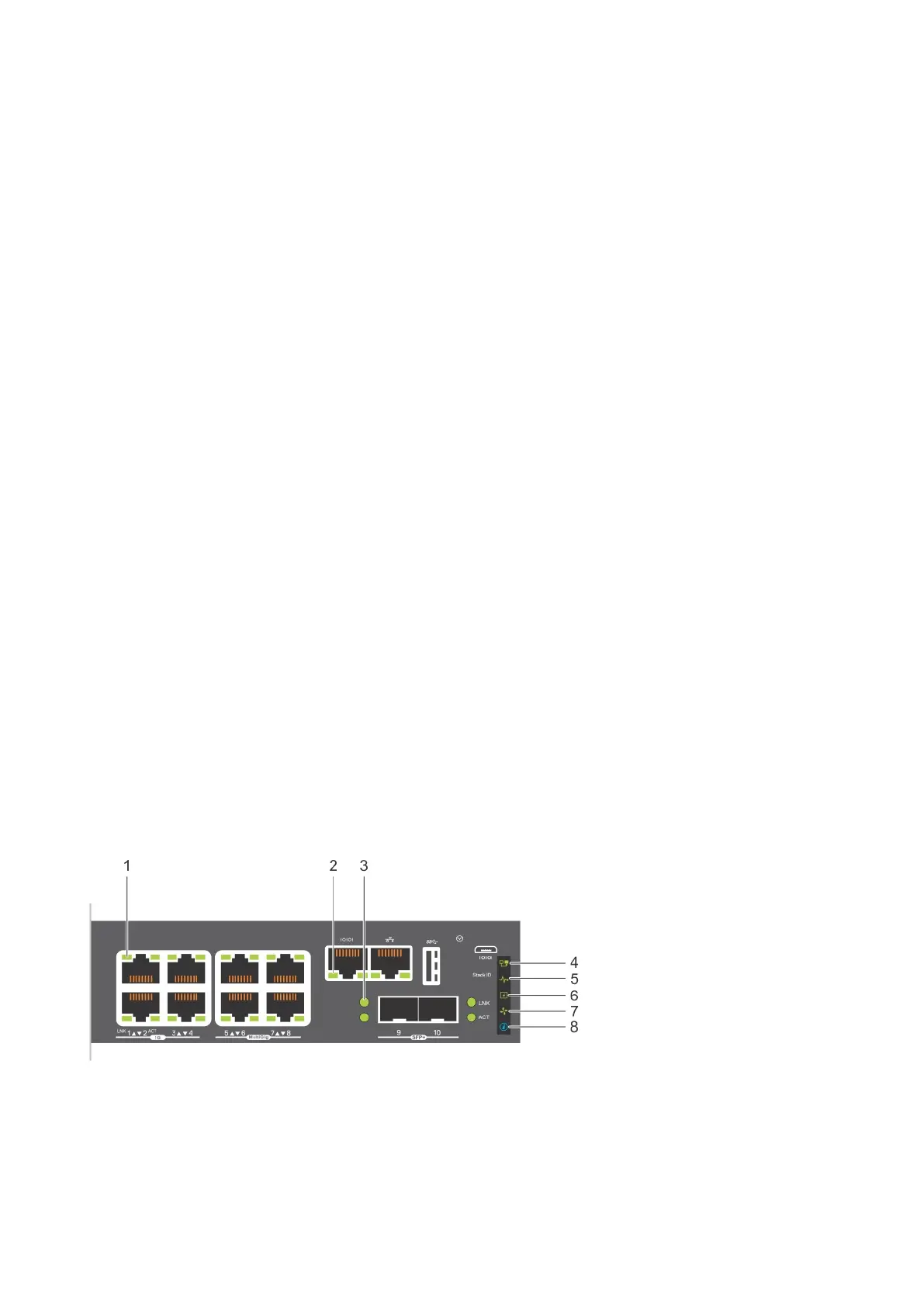

N3208PX-ON LEDs
1.
Link status LEDs 2. Console port LEDs on the left side—management port on
the right side.
14 N3200-ON/E3200-ON Series switch
