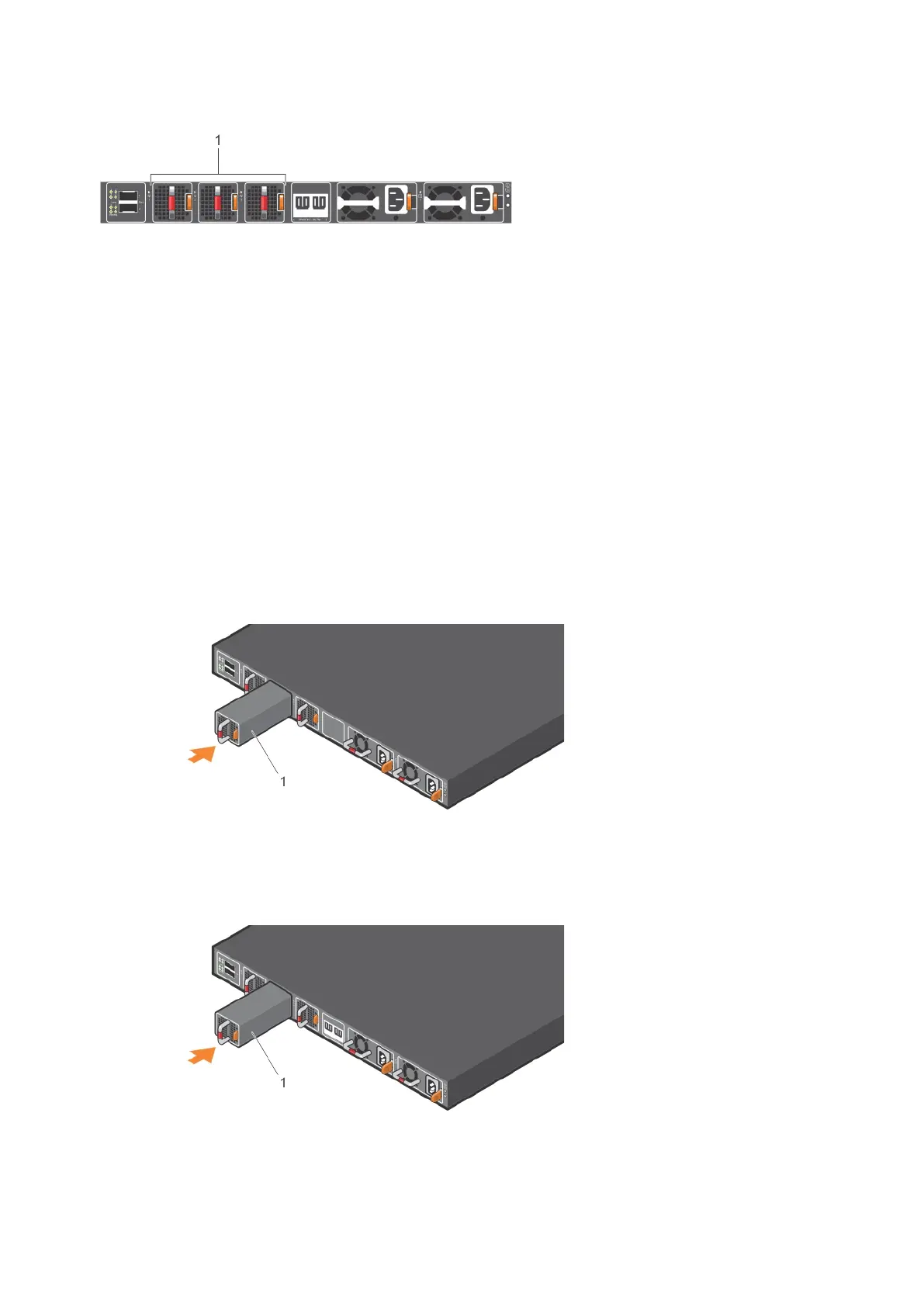

1. Fans—Fan1 is near the left edge of the switch; Fan3 is near the center of the switch.
Fan LEDs
● Solid green—Fan input is normal.
● Flashing green blink at 1 Hz—Fan is in a faulty state.
● Off—Fan is off.
Fan module installation
The fan module in the N3200-ON/E3200-ON Series switch, excluding N3208X-ON, is field replaceable.
1. Remove the fan slot cover from the N3200-ON/E3200-ON Series switch using a small #1 Phillips screwdriver. The fan slot
cover has one screw on the top and one screw on the bottom of the platform.
2. Take the fan module out of the shipping box.
3. Slide the module into the bay.
N3224F-ON/E3224F-ON, N3224P-ON, N3224T-ON, N3248TE-ON, and N3248X-ON fan installation
● Fan installation
N3224PX-ON, N3248P-ON/E3248P-ON, and N3248PXE-ON/E3248PXE-ON fan installation
● Fan installation
Fans
69
