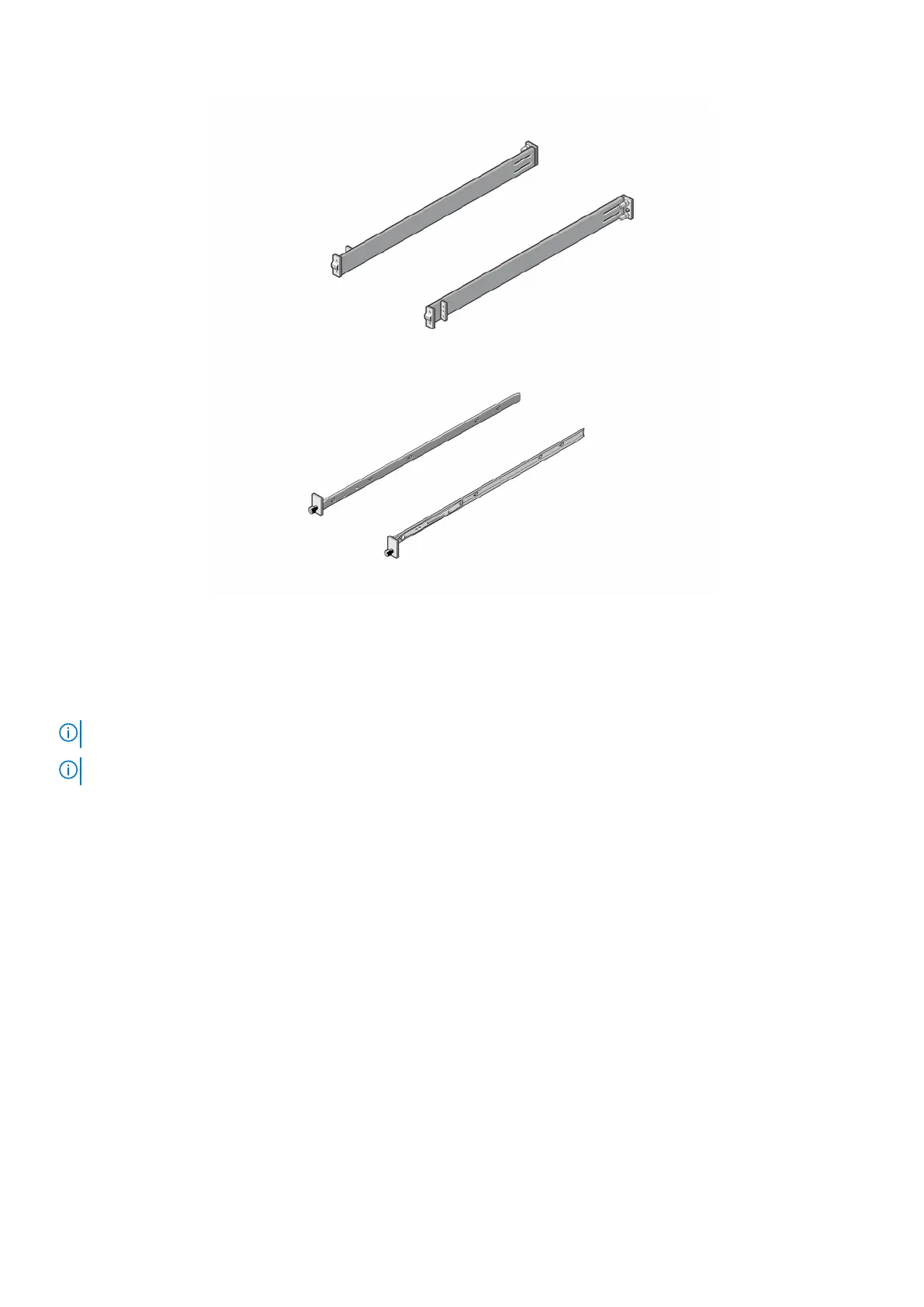

Figure 2. Separate rails
1U Tool-less mount ReadyRails installation
This switch installation procedure is for the full-width N3200-ON/E3200-ON Series switches only.
NOTE: Do not use this installation procedure for the compact N3208PX-ON switch.
NOTE: For more installation instructions, see the installation labels attached to the rail assembly.
1. Face the ReadyRails flange ears facing outward. Place one rail between the left and right vertical posts. Align and seat the
back flange rail pegs in the back vertical post flange.
The center extractions show how the pegs appear in both the square and nonthreaded round holes.
38
N3200-ON/E3200-ON Series switch installation
