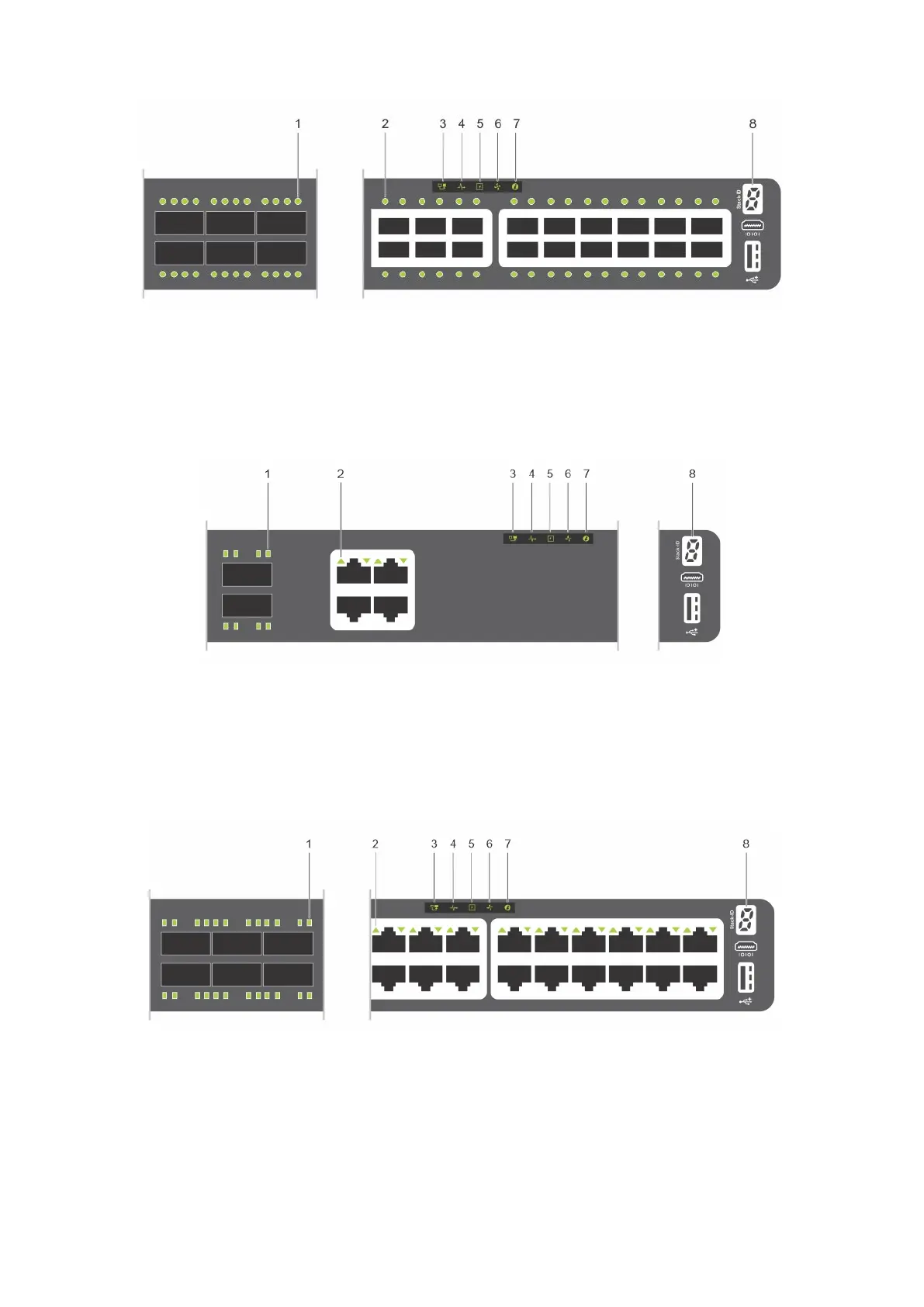

Figure 10. S4148F-ON and S4148FE-ON I/O-side LEDs
1. QSFP28 port activity LEDs 2. Link/activity port LEDs
3. Master LED 4. System LED
5. Power LED 6. Fan LED
7. Locator LED/System beacon 8. Stack ID
Figure 11. S4128T-ON I/O-side LEDs
1.
QSFP28 port activity LEDs 2. Link, activity, and beacon LED for top port (left), link,
activity, and beacon LED for bottom port (right).
3. Master LED 4. System LED
5. Power LED 6. Fan LED
7. Locator LED/System beacon 8. Stack ID
Figure 12. S4148T-ON I/O-side LEDs
1.
QSFP28, QSFP+ port activity LEDs 2. Link, activity, and beacon LED for top port (left), link,
activity, and beacon LED for bottom port (right).
3. Master LED 4. System LED
5. Power LED 6. Fan LED
7. Locator LED/System beacon 8. Stack ID
