Dell PowerSwitch S4128F-ON User Manual

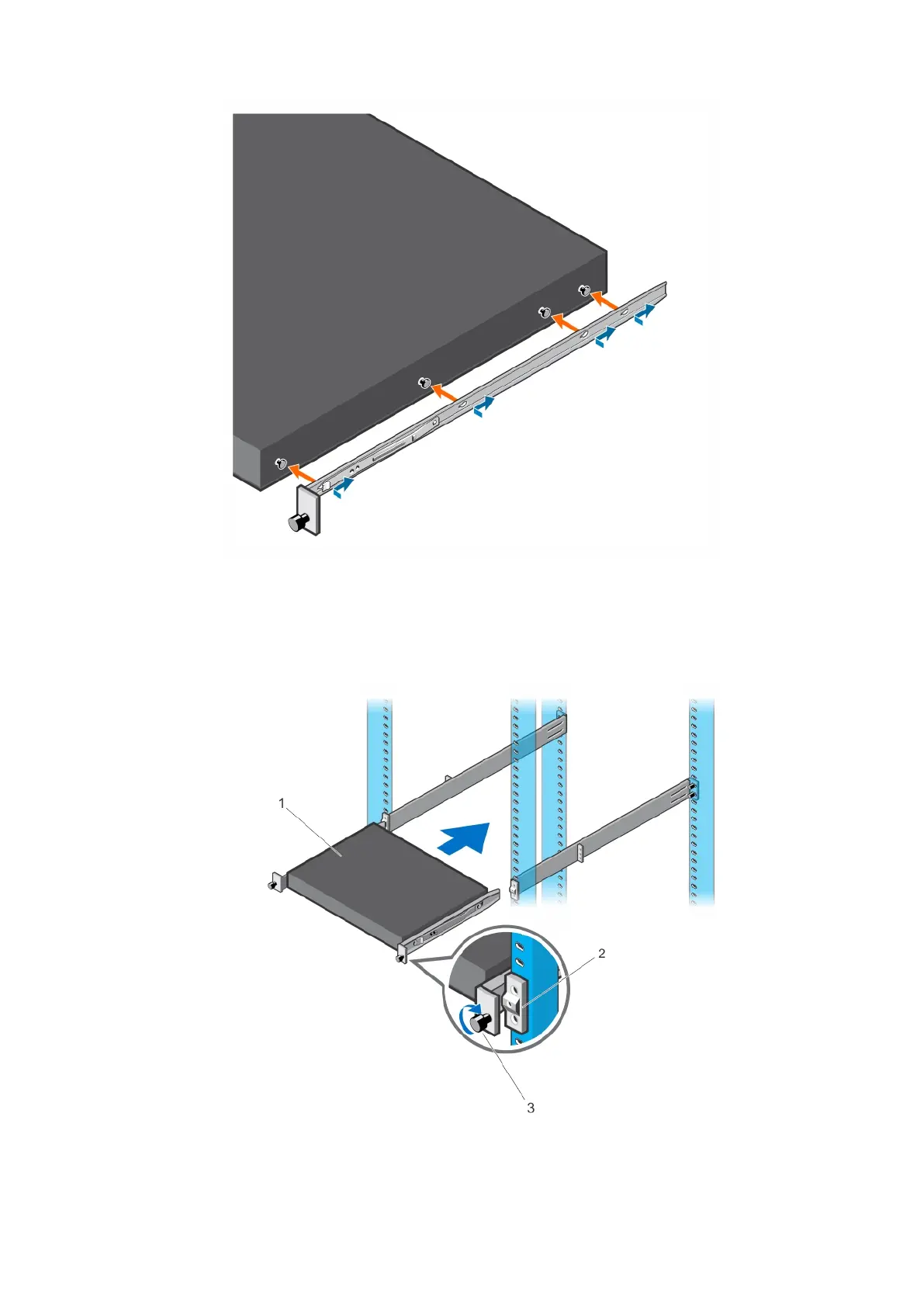

Figure 21. Switch rail attachment
2. After you install both rails, line them up on the ReadyRails. Slide the switch in until it is flush with the front of rack.
About three inches before you fully insert your switch, the rail locking feature engages to keep the switch from inadvertently
sliding out and falling.
Figure 22. Front rack installation
S4100–ON Series installation
29

Dell PowerSwitch S4128F-ON Specifications

General

Product Type	Switch
Model	S4128F-ON
Uplink Ports	4 x 100GbE QSFP28
Power Supply	Dual, hot-swappable
Airflow	Front-to-back or back-to-front
Jumbo Frame Support	Yes, up to 9216 bytes
Latency	800ns
Management	CLI, SNMP, REST API
Dimensions (W x D x H)	43.0 cm x 4.3 cm
