Power cooling module
The following figure shows the power cooling module (PCM) used in controller enclosures and optional expansion enclosures.
The PCM includes integrated cooling fans. The example shows a PCM oriented for use in the left PCM slot of the enclosure rear
panel.

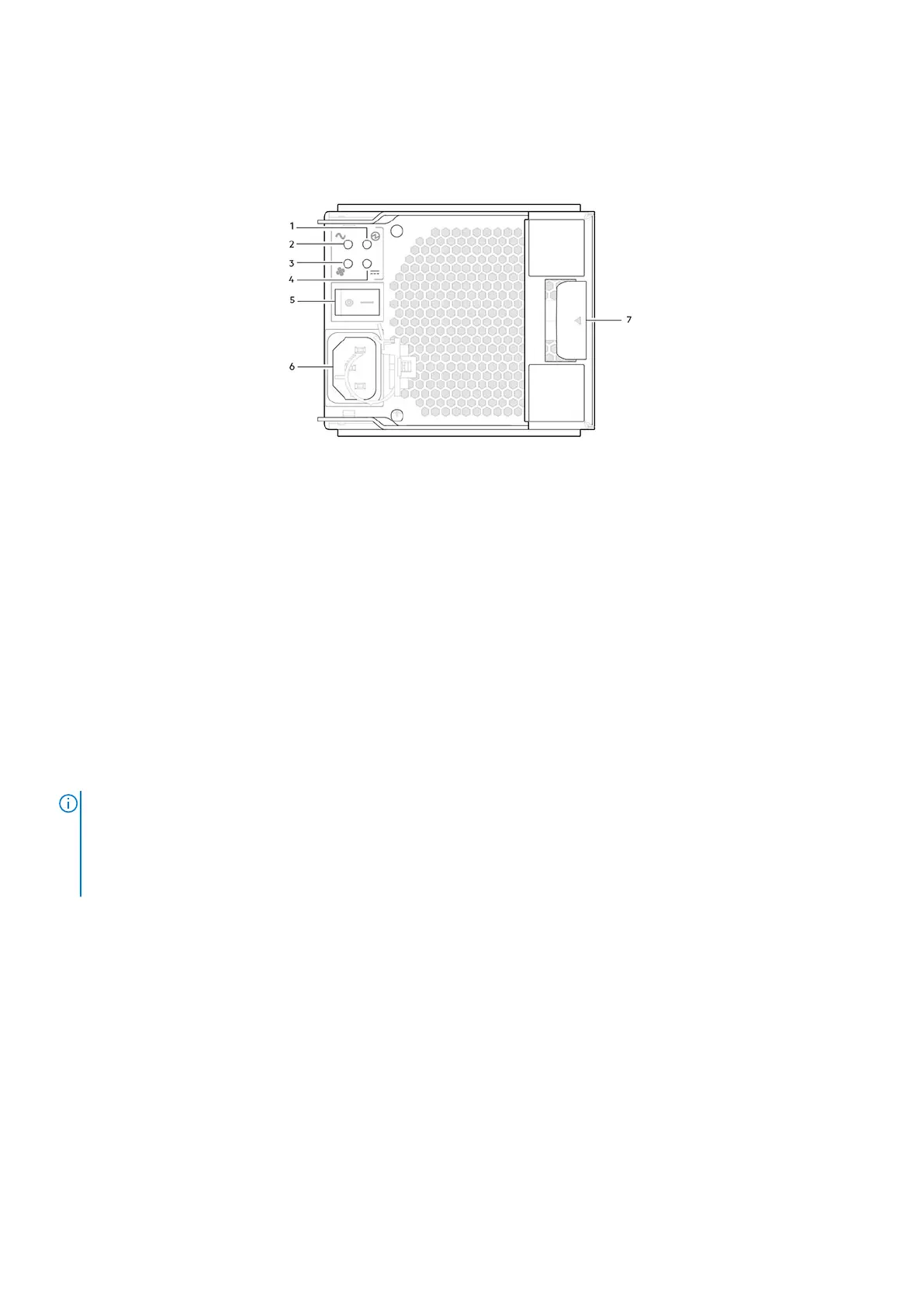

Figure 13. Power cooling module (PCM)
1. PCM OK LED (Green) 2. AC Fail LED (Amber/blinking amber)
3. Fan Fail LED (Amber/blinking amber) 4. DC Fail LED (Amber/blinking amber)
5. On/Off switch 6. Power connector
7. Release latch
LED behavior:
● If any of the PCM LEDs are illuminated amber, a module fault condition or failure has occurred.
● For a detailed description of PCM LED behavior, see 2U enclosure PCM LEDs.
5U84 enclosure core product
The following figures show component locations and CRU slot indexing on the 5U84 enclosure front panel with drawers, and on
the rear panel.
The 5U84 supports up to 84 DDIC modules populated within two drawers (42 DDICs per drawer; 14 DDICs per row).
NOTE:
● The 5U84 does not ship with DDICs installed. DDICs ship in a separate container, and must be installed into the
enclosure drawers during product installation and setup.
● To ensure sufficient circulation and cooling throughout the enclosure, all PSU slots, cooling module slots, and IOM slots
must contain a functioning CRU. Do not replace a faulty CRU until the replacement is available and in hand.
