5U84 enclosure front panel

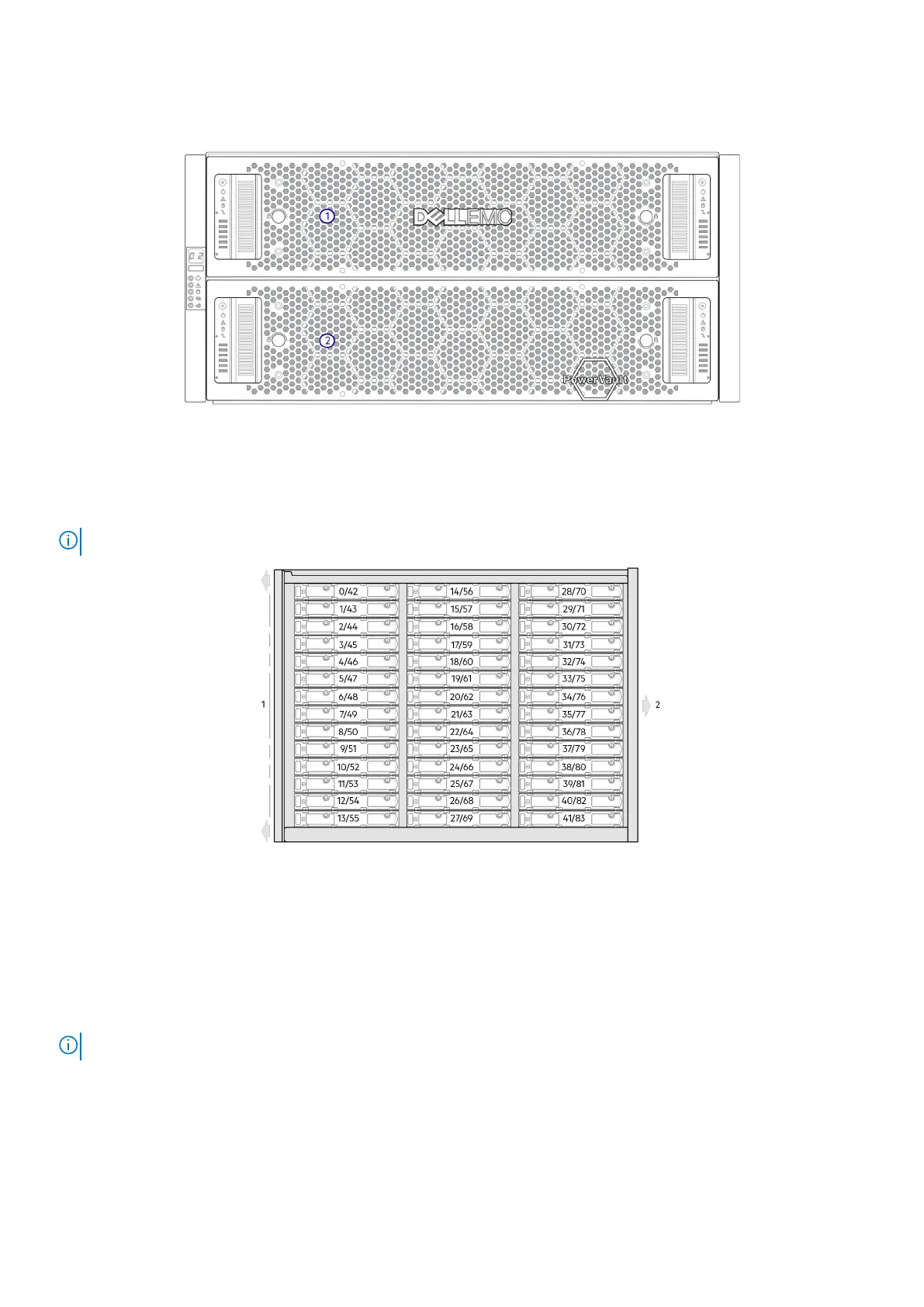

Figure 14. 5U84 enclosure—front panel components
1. 5U84 enclosure drawer (slot 0 = top drawer)
2. 5U84 enclosure drawer (slot 1 = bottom drawer)
This figure shows a plan view of an enclosure drawer that is accessed from the enclosure front panel. The conceptual graphics
are simplified for clarity.
NOTE: See ME5084 DDIC LEDs for 5U84 (LFF disks) DDIC LED behavior.
Figure 15. 5U84 enclosure system - plan view of drawer
1. Drawer front panel (shown as an edge in plan view)
2. Direction into the enclosure drawer slot (slot 0 or 1)
5U84 enclosure rear panel
The controller modules and IOMs use alphabetic designators, and the Power Supply Units (PSUs) and Fan Control Modules
(FCMs) use numeric designators to identify the slots in a 5U84 enclosure.
NOTE: Controller modules, IOMs, PSUs, and FCMs are available as CRUs.
5U84 controller enclosures support dual-controller module configuration only. If a partner controller module fails, the controller
fails over and runs on a single controller module until the redundancy is restored. Both controller module slots must be occupied
to ensure sufficient airflow through the controller during operation.
Storage system hardware
15

Dell PowerVault ME5 Series Specifications

General

Form Factor	2U or 5U
RAID Levels	RAID 0, 1, 5, 6, 10
Drive Types	SSD
Max Drives	336
Controllers	Dual active-active controllers
Host Connectivity	FC, iSCSI, SAS
Management	Dell EMC PowerVault Manager
Power Supply	Dual redundant hot-swappable power supplies
Operating Temperature	5°C to 35°C (41°F to 95°F)
