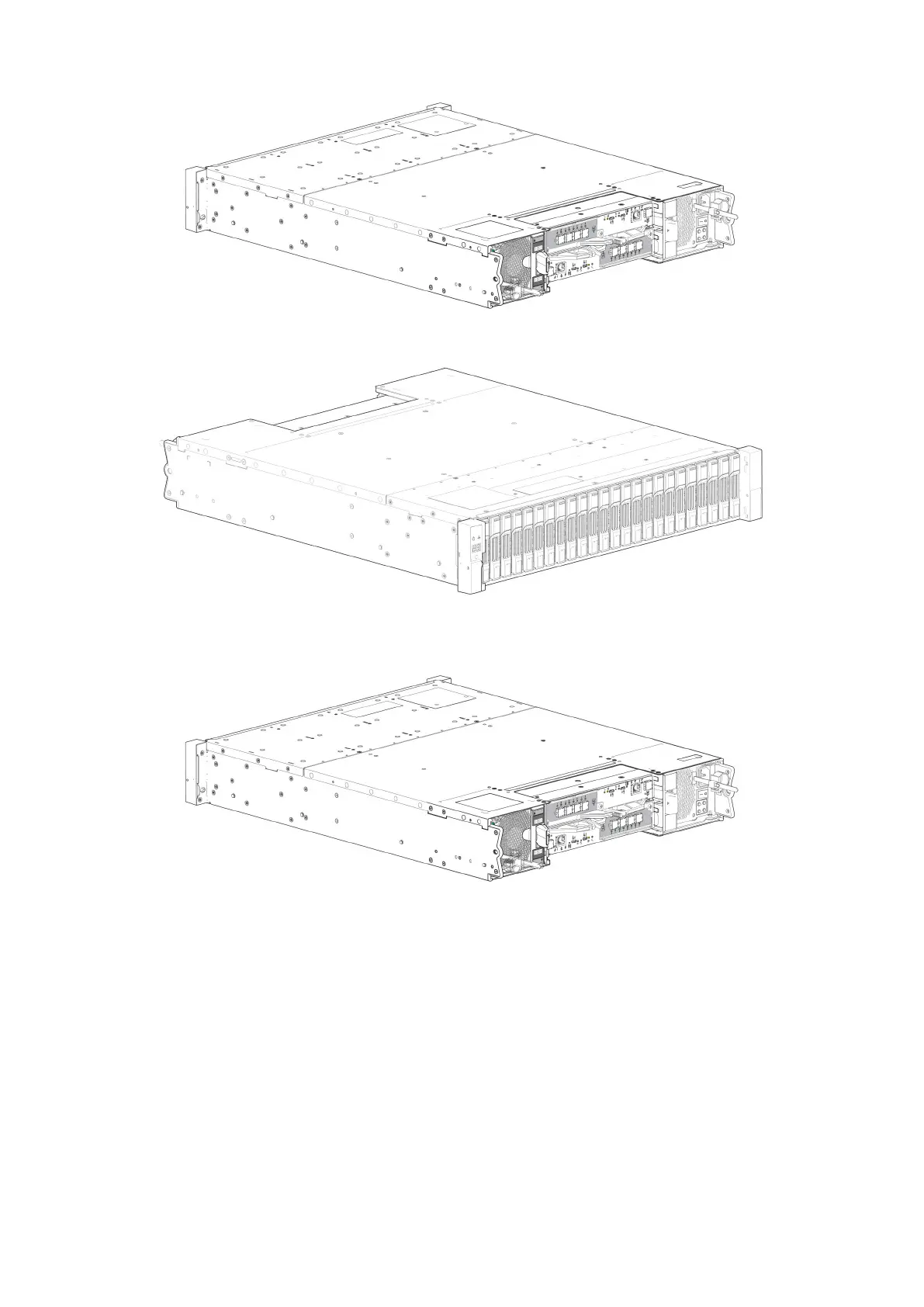

Figure 2. 2U12 enclosure system—rear orientation
Figure 3. 2U24 enclosure system—front orientation
The 2U24 controller enclosure is equipped with dual-controllers.
Figure 4. 2U24 enclosure system—rear orientation
Storage system hardware
