Dell Precision 3460 Small Form Factor User Manual

Steps

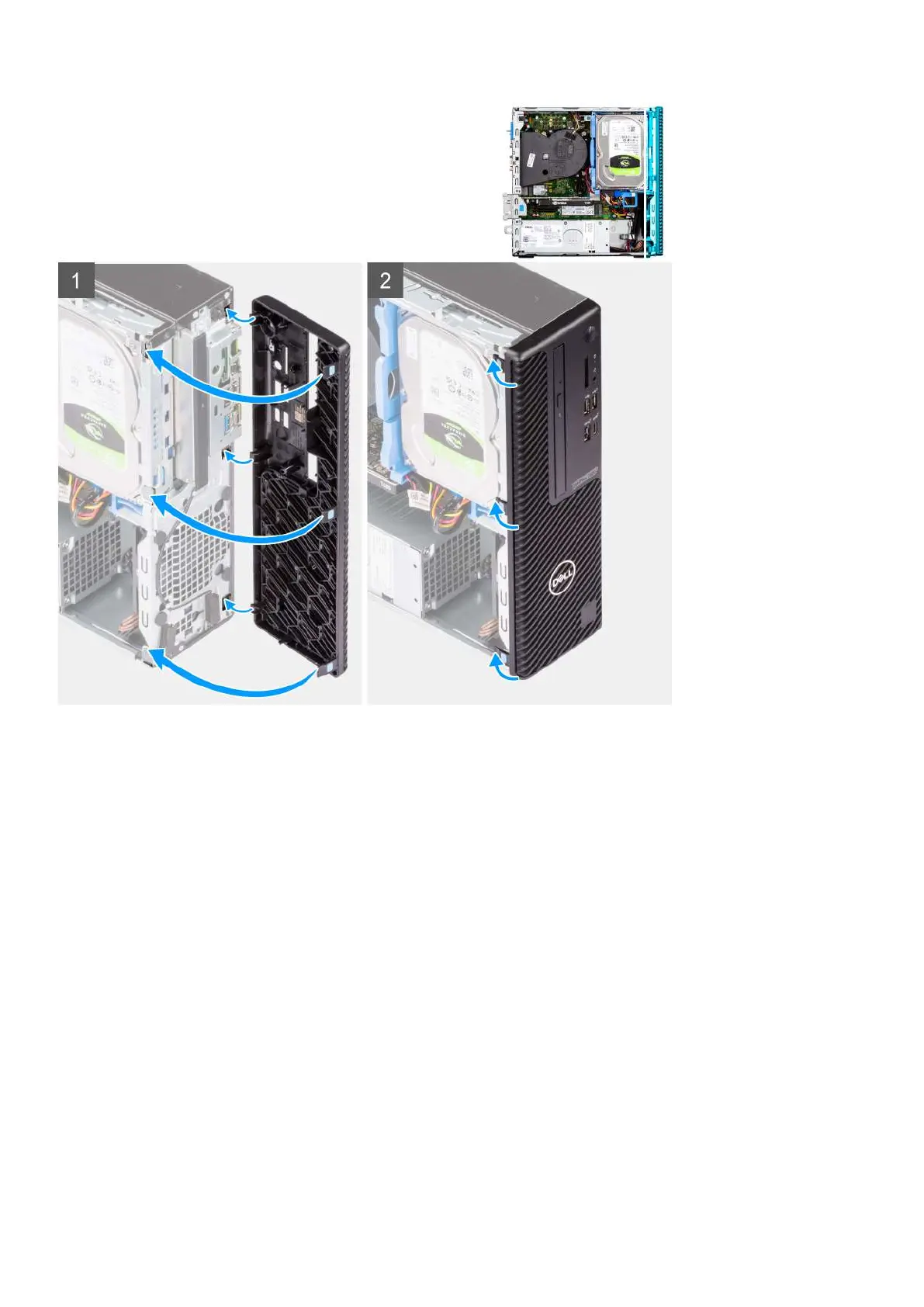

1. Position the front bezel to align the tabs on the bezel with the slots on the chassis.
2. Press the bezel until the tabs clicks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Hard drive
Removing the 2.5-inch hard drive
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
About this task
The following images indicate the location of the 2.5-inch hard-drive assembly and provide a visual representation of the
removal procedure.
16
Removing and installing components

Dell Precision 3460 Small Form Factor Specifications

General

Brand	Dell
Model	Precision 3460 Small Form Factor
Category	Desktop
Language	English
