2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 2.5-inch hard-drive.
5. Remove the 3.5-inch hard-drive.
6. Remove the hard-drive and optical-drive cage.
About this task

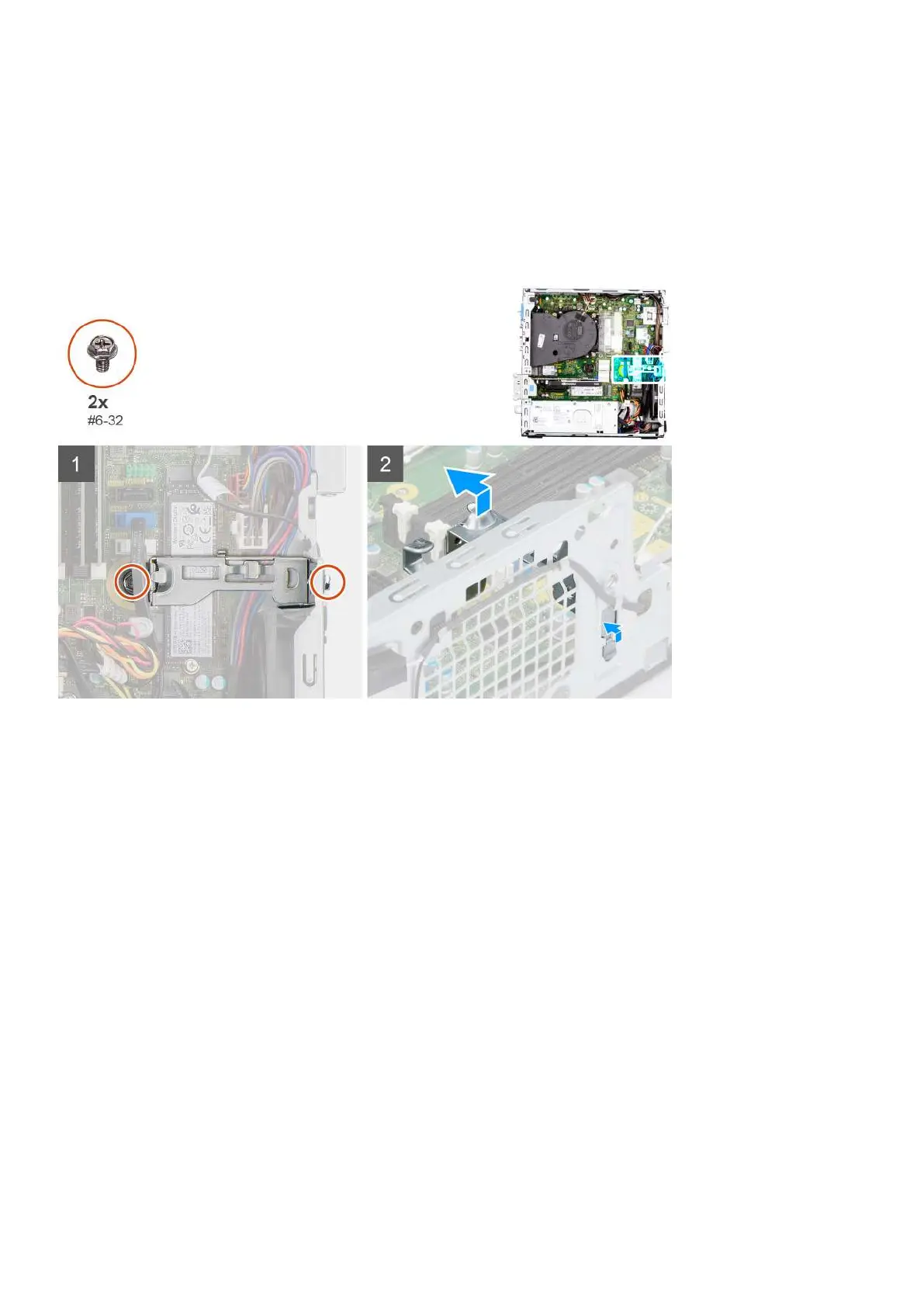

The following images indicate the location of the Bay support bracket and provide a visual representation of the removal
procedure.
Steps
1. Remove the two screws (#6-32) that secures the Bay support bracket to the chassis.
2. Slightly lift the Bay support bracket and pull to release it from the slot on the chassis.
3. Lift the Bay support bracket off the chassis.
Installing the Bay support bracket
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the Bay support bracket and provides a visual representation of the installation
procedure.
42
Removing and installing components
To Next Page
