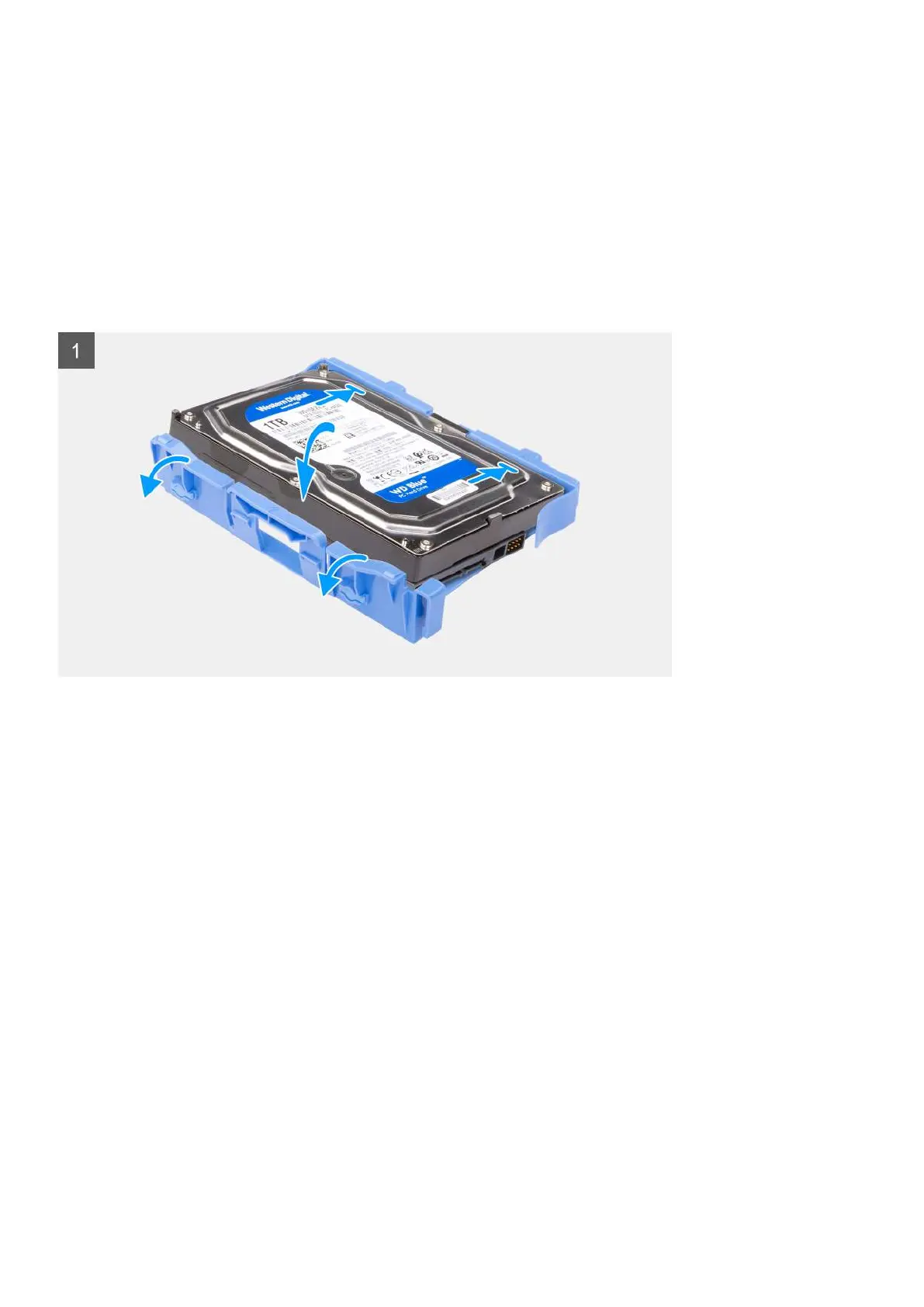

4. Slide the hard-drive towards the right to free it from the mounting points on the caddy and lift it away from the system.
Installing the 3.5-inch hard drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the 3.5-inch hard drive and provides a visual representation of the installation
procedure.
22 Removing and installing components
