Dell Precision 3460 Small Form Factor User Manual

Steps

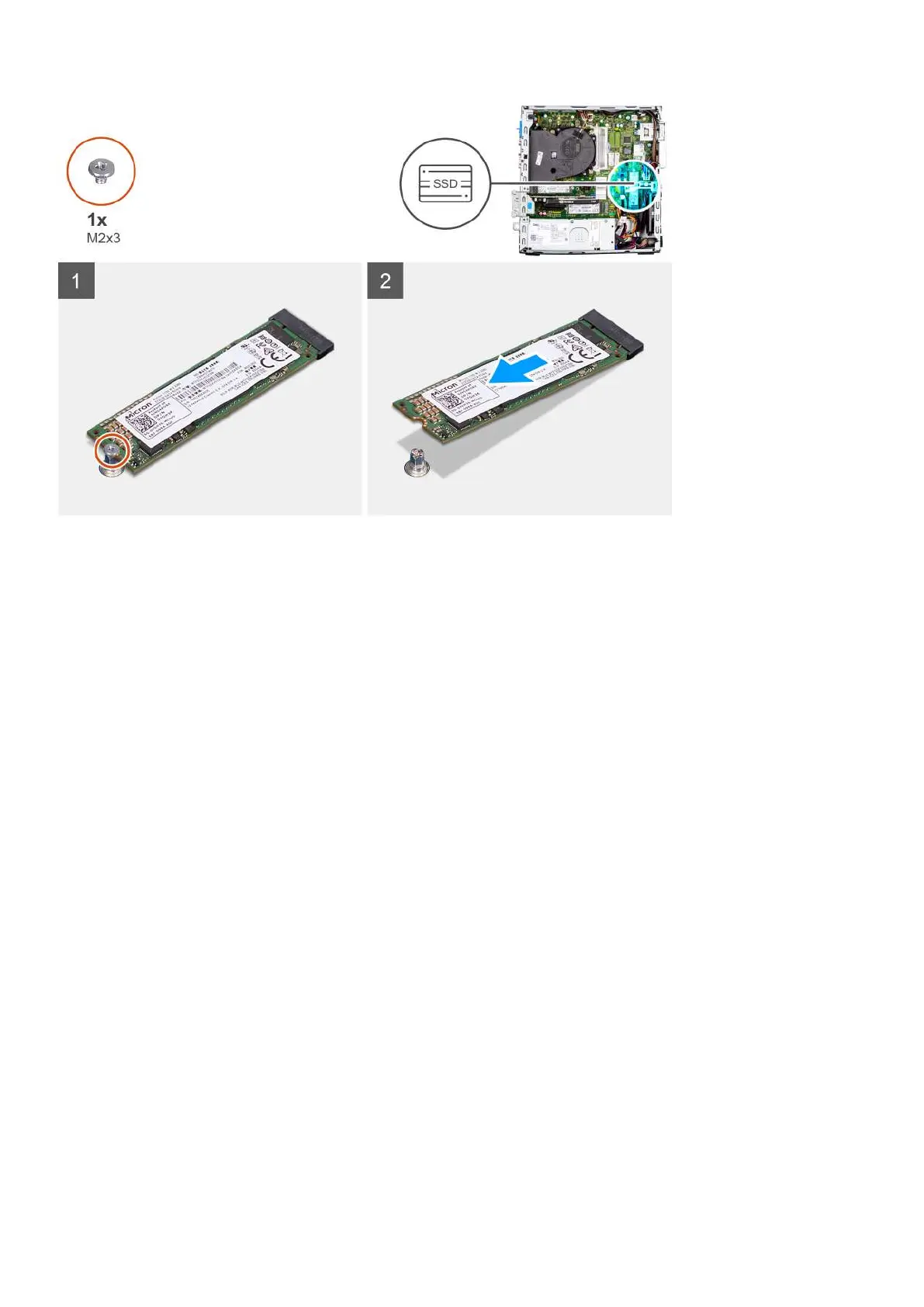

1. Remove the screw (M2x3) that secures the solid-state drive to the system board.
2. Slide and lift the solid-state drive off the system board.
Installing the M.2 2280 solid-state drive (slot-3)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the solid-state drive and provides a visual representation of the installation
procedure.
Removing and installing components
31
