Dell Precision 3460 Small Form Factor User Manual

Steps

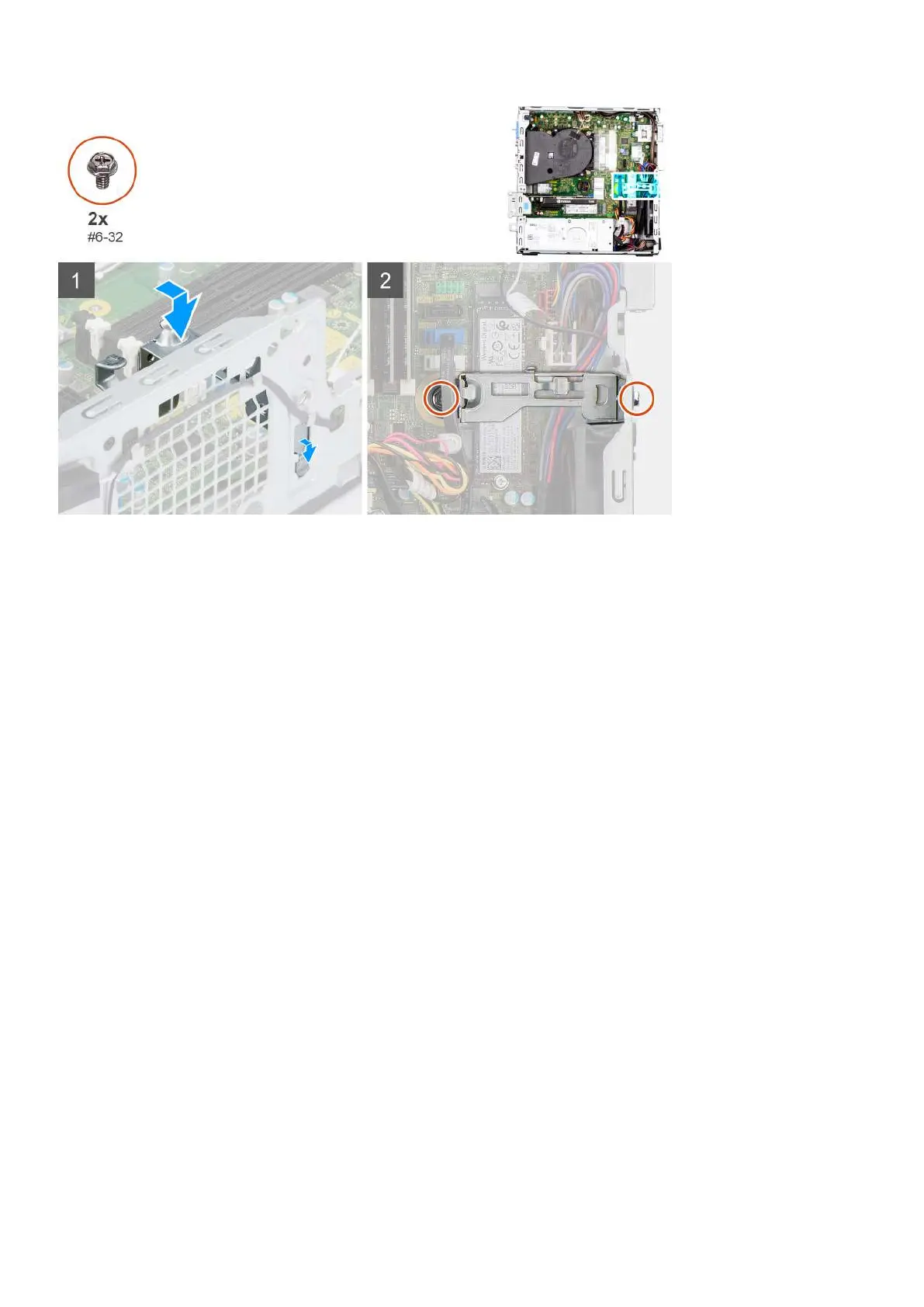

1. Insert the Bay support bracket at an angle into the slot on the chassis.
2. Align the screw holes and place the Bay support bracket on the slot on the chassis.
3. Replace the two screws (#6-32) to secure the Bay support bracket to the chassis.
Next steps
1. Install the hard-drive and optical-drive cage.
2. Install the 3.5-inch hard-drive.
3. Install the 2.5-inch hard-drive.
4. Install the front bezel.
5. Install the side cover.
6. Follow the procedure in after working inside your computer.
Expansion card
Removing the graphics card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the graphics card and provide a visual representation of the removal procedure.
Removing and installing components
43
