Steps

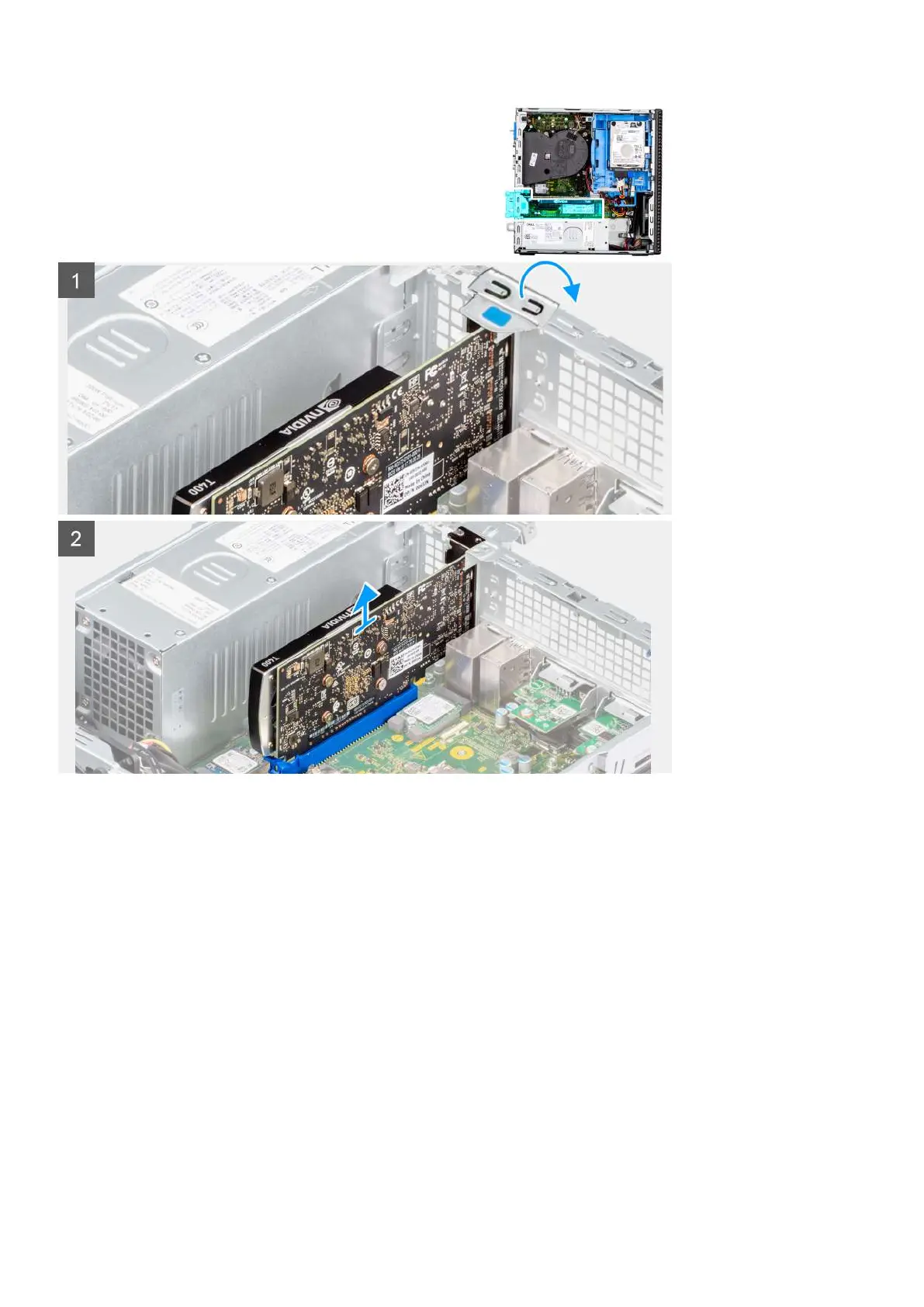

1. Using the tab, lift and open the PCIe door.
2. Press down on the release tab and lift the graphics card off the system board.
Installing the graphics card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the graphics card and provides a visual representation of the installation procedure.
44
Removing and installing components
