Steps
1. Disconnect the power cables from the system board and unroute them from the routing guides on the chassis.
2. Remove the three screws (#6-32) that secure the power-supply unit to the chassis.
3. Slide the power-supply unit away from the back of the chassis.
4. Lift the power-supply unit off the chassis.
Installing the power-supply unit
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
NOTE:
The cables and ports on the back of the power-supply unit are color-coded to indicate the different power wattage.
Ensure that you plug in the cable to the correct port. Failure to do so may result in damaging the power-supply unit and/or
system components.
About this task

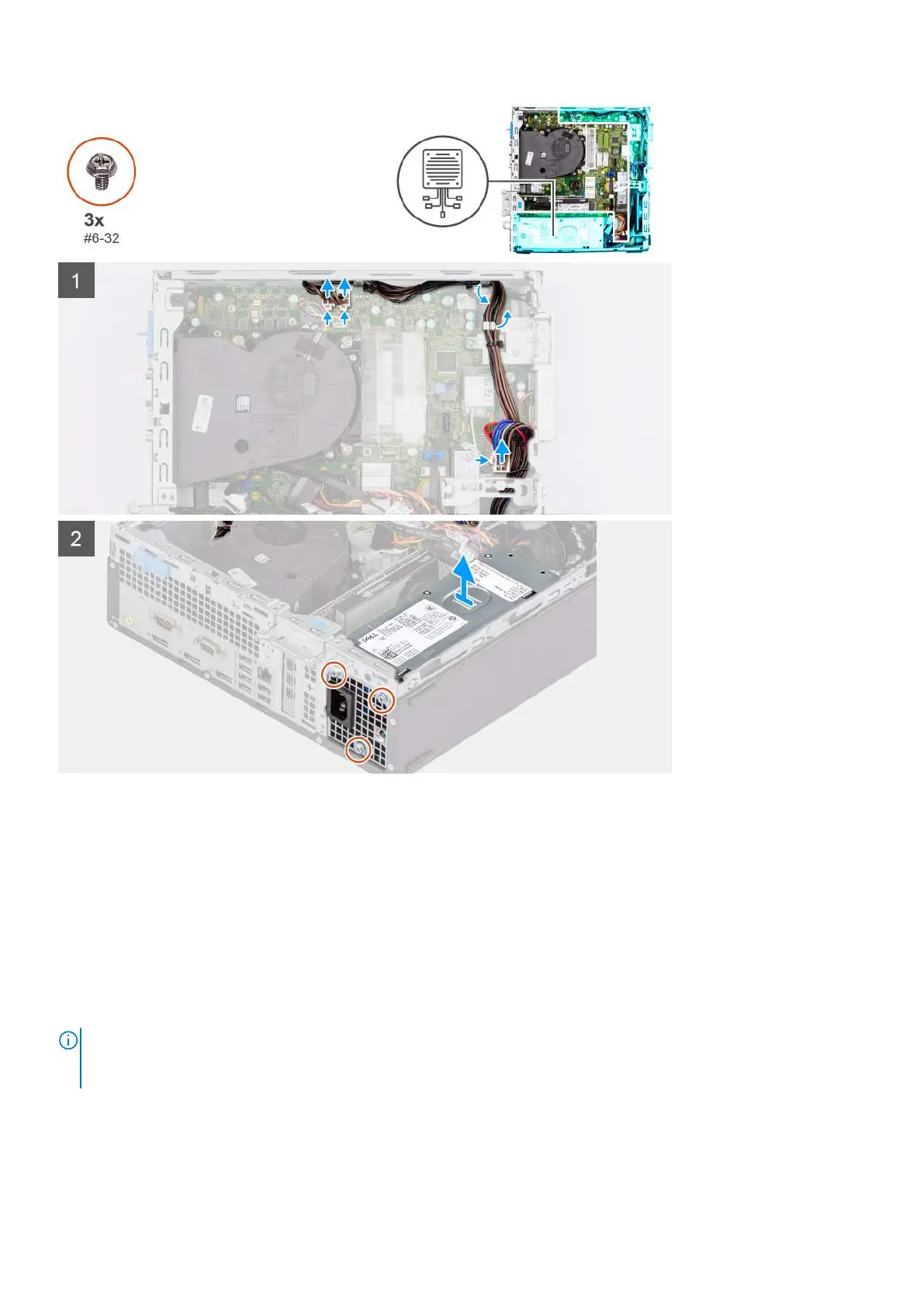

The following images indicate the location of the power-supply unit and provides a visual representation of the installation
procedure.
Removing and installing components
59
