Dell Precision 3460 Small Form Factor User Manual

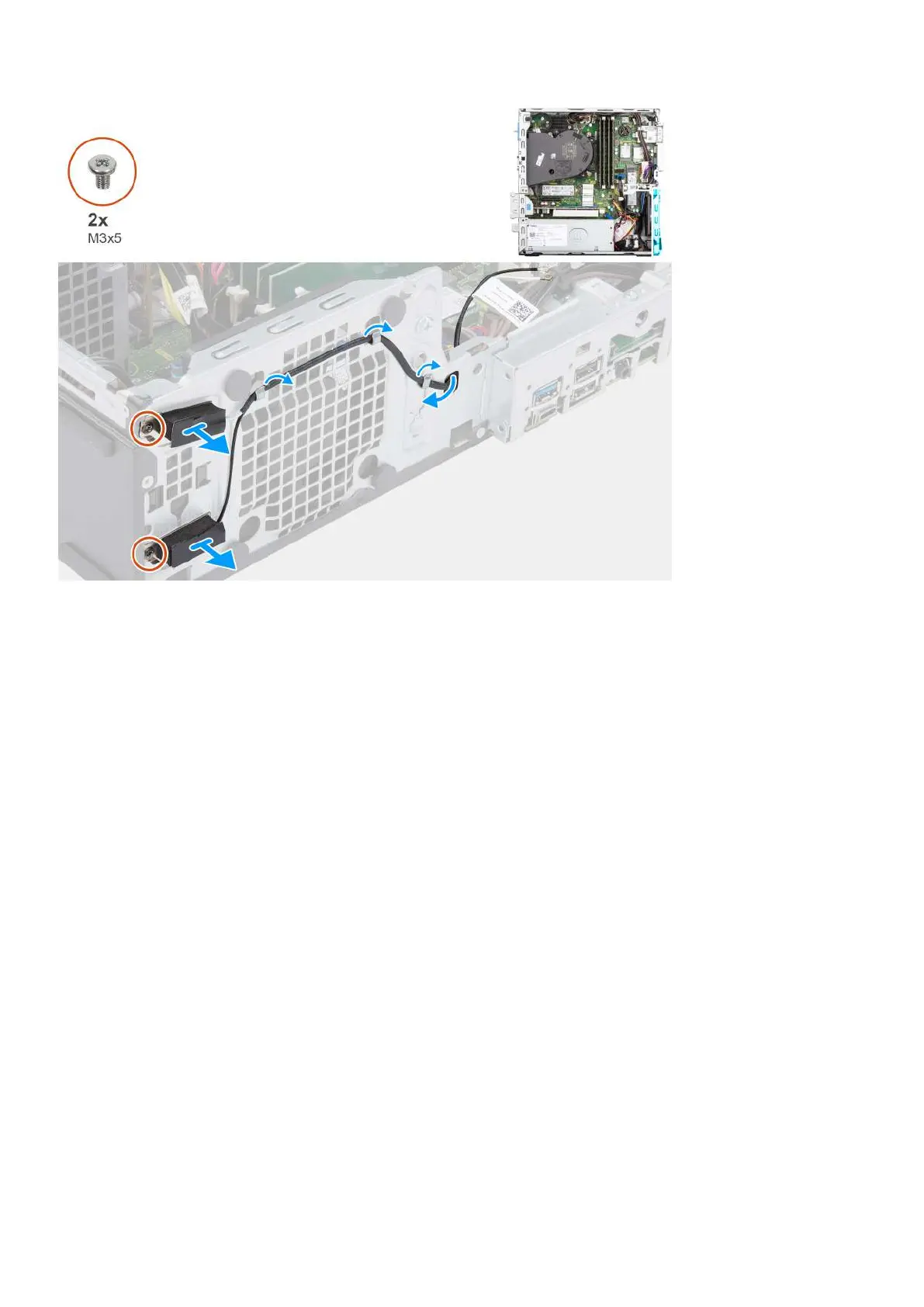

Steps
1. Remove the antenna cables from the routing guides on the chassis.
2. Remove the two (M2x3) screws that secures the WLAN antenna to the chassis.
3. Lift the WLAN antenna off the chassis.
Installing the WLAN antenna
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the WLAN antenna and provides a visual representation of the installation
procedure.
36
Removing and installing components
