Steps

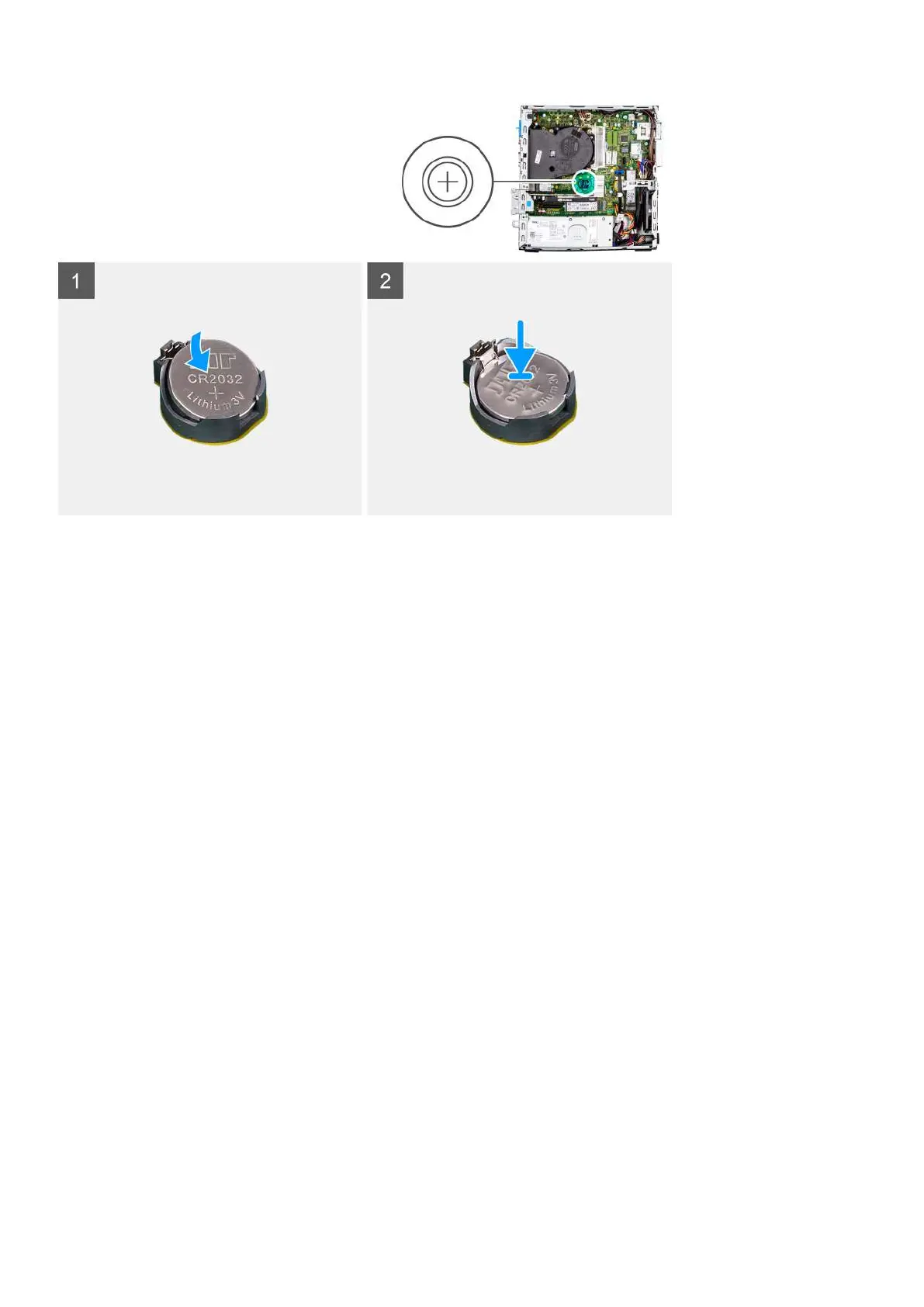

1. Insert the coin cell battery with the "+" sign facing up and slide it under the securing tabs at the positive side of the
connector.
2. Press the battery into the connector until it locks into place.
Next steps
1. Install the hard-drive and optical-drive bracket.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Memory
Removing the memory
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the 2.5-inch hard-drive.
5. Remove the 3.5-inch hard-drive.
6. Remove the hard-drive and optical-drive cage.
About this task
The following images indicate the location of the memory modules and provide a visual representation of the removal procedure.
Removing and installing components
39
