Disassembly and reassembly

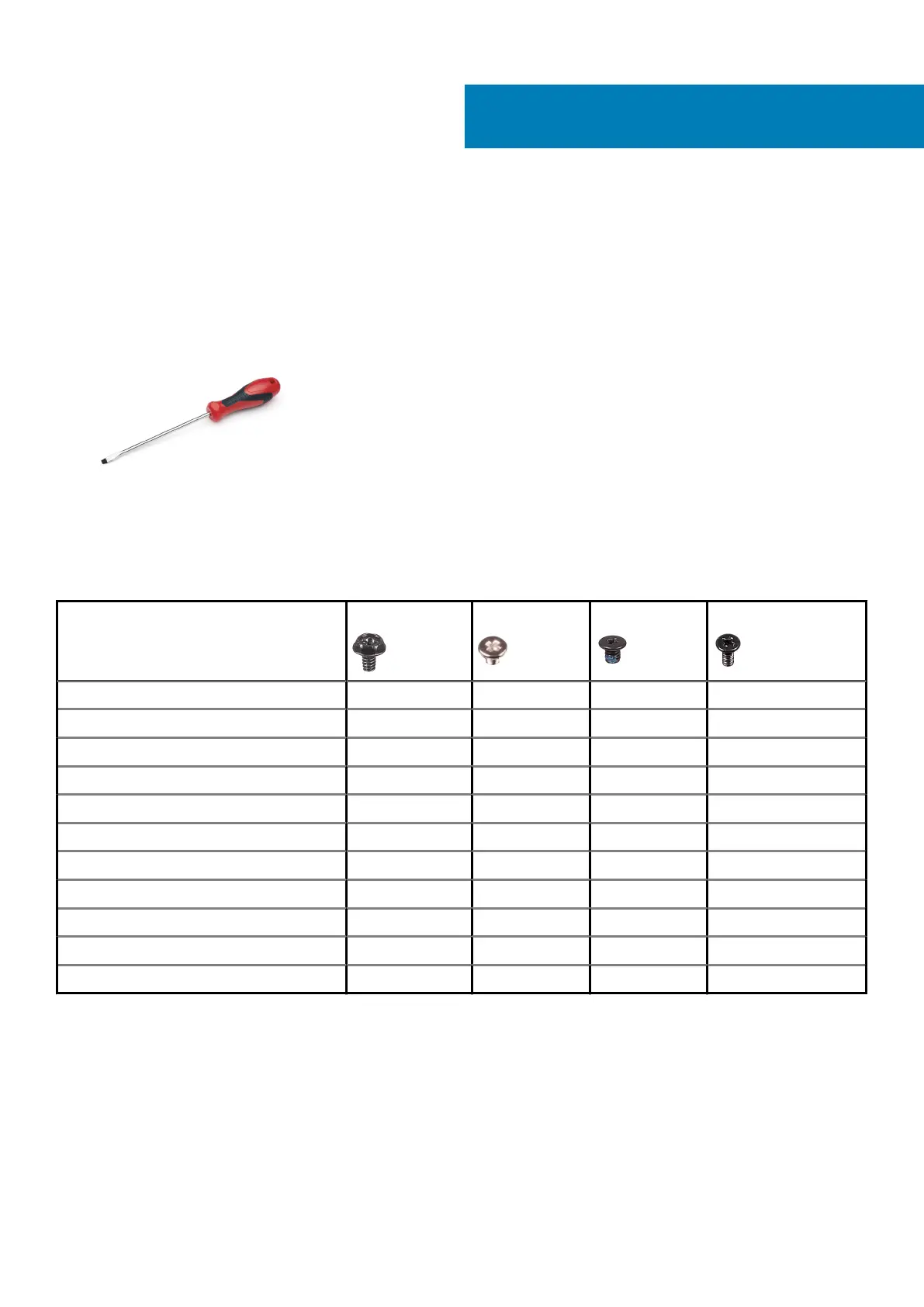

Recommended tools
The procedures in this document require the following tools:
• Phillips # 1 screwdriver
• Small flat blade screwdriver
Screw list
The following table provides the list of screws that are used for securing different components to the computer.
Table 1. Screw list
Component
#6-32x1/4'' M2x2.5 M3X3 M2X3.5
Power supply bracket 2
Power supply unit 4
Heat sink blower (95 W heat sink solution) 3
System-fan bracket 1
System board 8
IO panel 1
Security-lock metal bracket 2
Solid-state drive (SSD) card 1
Optical drive bracket 1
Optional IO card 2
WLAN card and SMA antenna module 1
Chassis rubber feet
Removing the chassis rubber feet
Steps
1. Follow the procedure in Before Working Inside Your Computer.
4
16 Disassembly and reassembly
