Dell Precision 3640 Tower - Page 90

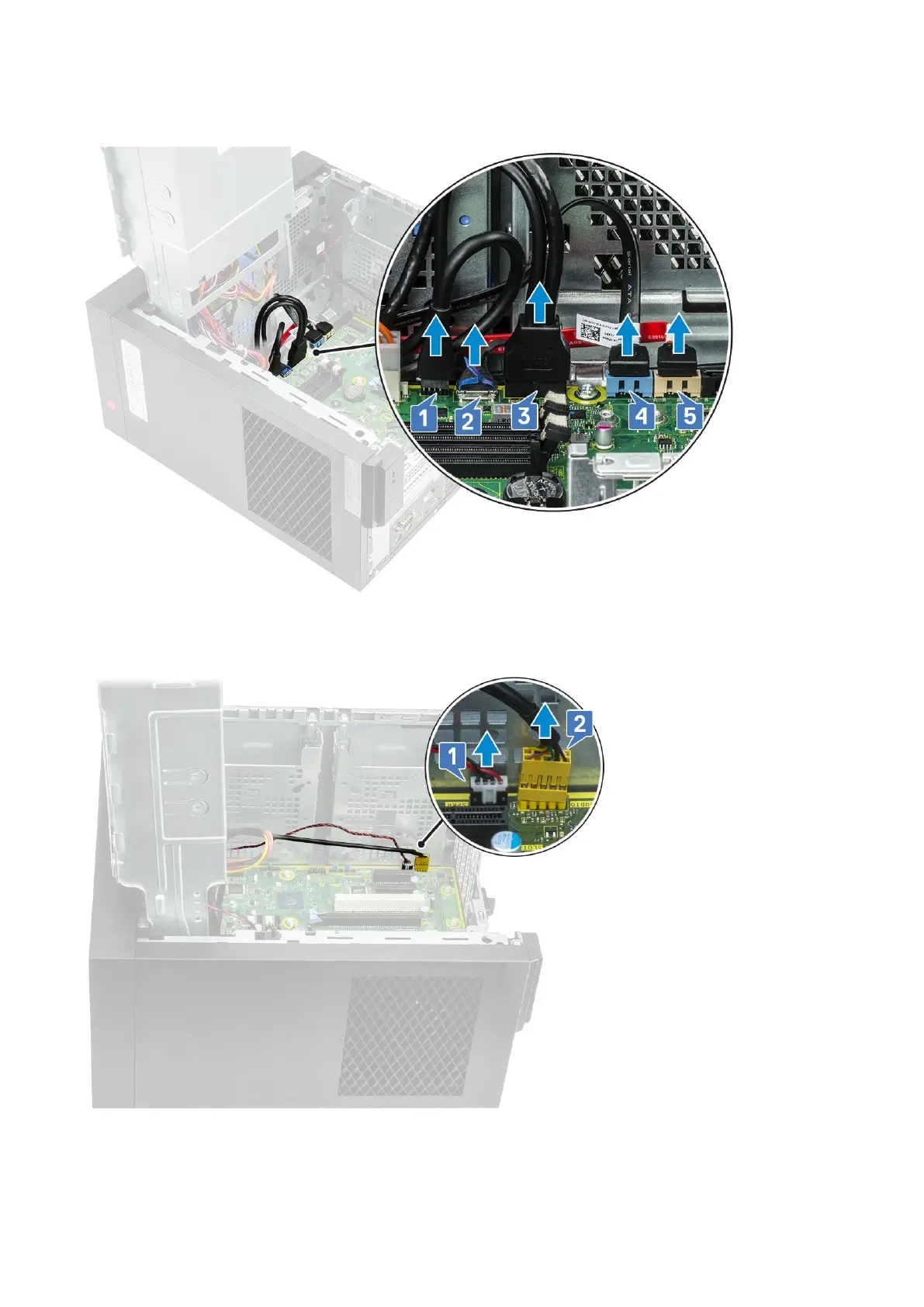

• Primary HDD SATA cable [4]
• ODD SATA cable [5]
5. Remove the following cables:
• Speaker cable [1]
• IO audio cable [2]
6. Remove the 8 #6-32x1/4'' screws that secure the system board to the chassis.
90
Disassembly and reassembly
